0000212: Climate control devices powered by sensors data and central server

ID	Project	Category	View Status	Date Submitted	Last Update

0000212	Microcontrollers, shields, automation, arduino	[All Projects] General	public	2017-02-23 12:06	2022-02-13 11:30

Reporter	DigitalMy
Priority	normal	Severity	major	Reproducibility	N/A
Status	assigned	Resolution	open

Summary	0000212: Climate control devices powered by sensors data and central server
Description	There are sensors installed inside and outside as # But currently wSmartHome is able to contol only relay boards in manual mode. Need to adjust automation for Climate inside, based on sensor data. 1. Temperature: ventilation, air conditioner 2. Humidity: ventilation, moistener 3. Gas level: ventilation 4. Pressure: nothing
Tags	No tags attached.

DigitalMy 2020-08-27 20:15 administrator ~0003949	Device DM328P_SE Arduino Uno 5V (updated power component) Gas sensor MQ-135 for CO2 estimation

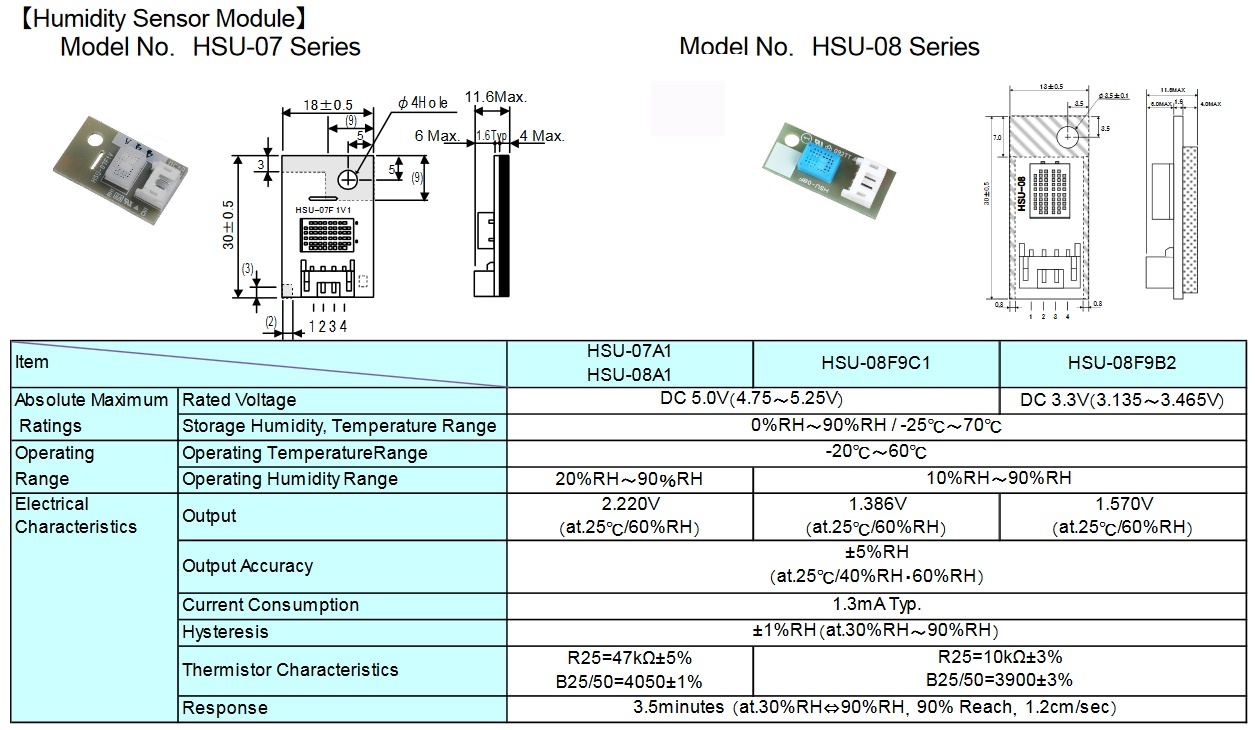

DigitalMy 2022-02-13 11:19 administrator ~0007150 Last edited: 2022-02-13 11:30 View 2 revisions	Got from Canon ipf605 temperature and humidity sensor module HSU-07 36H G92TT with 4-pin connector: 1 - DC +5.0V power input 2 - Humidity voltage output 3 - GND with TH1 4 - Temperature resistive output TH2 made by HDK, relative humidity sensor HSU-07.jpg (239,872 bytes) HSU-07.jpg (239,872 bytes)
