0000225: Replace oil pan damaged with high bolt tension

ID	Project	Category	View Status	Date Submitted	Last Update

0000225	vehicle service	Suzuki GSR400	public	2017-04-29 20:42	2018-02-28 09:35

Reporter	DigitalMy
Priority	normal	Severity	minor	Reproducibility	always
Status	assigned	Resolution	open

Summary	0000225: Replace oil pan damaged with high bolt tension
Description	Oil changed. Used extra power on bolt /09247-14036 and pan crack happened /11511-44G00
Tags	No tags attached.

DigitalMy 2017-04-29 21:02 administrator ~0000511 Last edited: 2018-02-28 09:42 View 4 revisions	M14 *1.5mm (thread), length 12mm plug, oil drain /purchased wrong real thread 1.25 11mm OIL PAN /11511-44G00-000 -> soldered =2000RUR

DigitalMy 2017-05-06 15:37 administrator ~0000513 Last edited: 2018-02-28 09:32 View 4 revisions	BOLT(8X25) exhaust pipe (manifold) 09106-08165-000 -> M8 *25 A2 -> purchased, 2pcs, replace on exhaust manifold -> pending Threaded hole in front of HEAD ASSY,CYLINDER (11100-44G10-000) damaged a lot, restore with metal plastifier, use 3D-printed bolt, but first extract broken bolt part -> pending

DigitalMy 2017-05-24 10:51 administrator ~0000529 Last edited: 2018-02-28 09:41 View 4 revisions	Additional damage: o-ring Suzuki GSR400 09280-13004 3pcs O-RING(D:1.9,ID:13) from oil valve pan, size D=13.0mm * W=1.9mm , H&Q 1010219 1pc in stock (replaced)

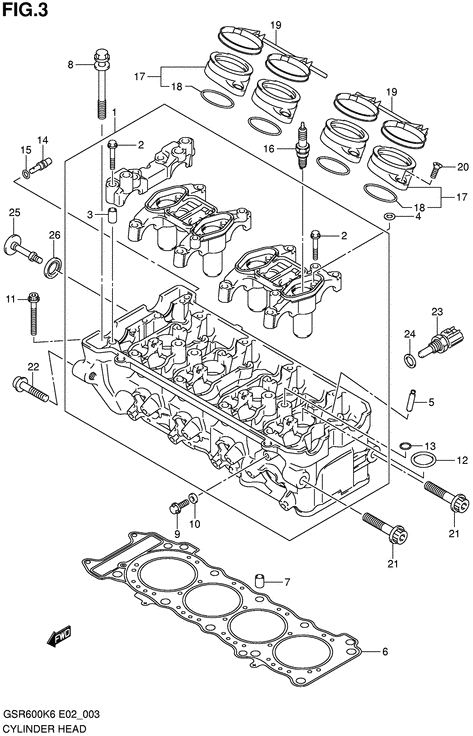

DigitalMy 2018-02-28 09:29 administrator	GSR600_cylinder_head_.png (49,023 bytes) GSR600_cylinder_head_.png (49,023 bytes)

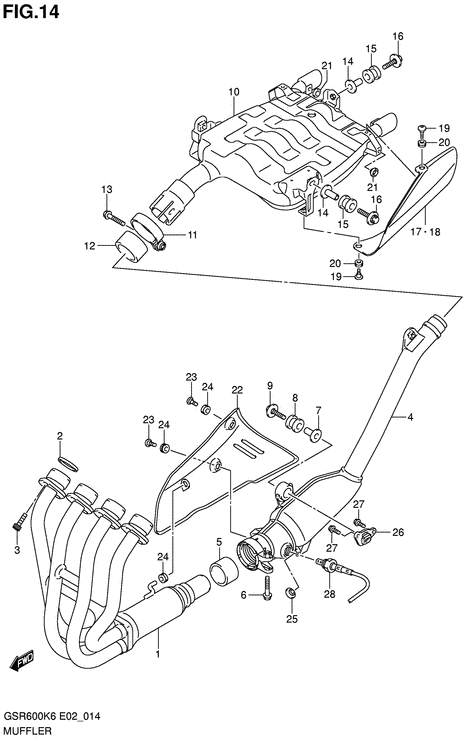

DigitalMy 2018-02-28 09:34 administrator	GSR600_muffler_.png (32,059 bytes) GSR600_muffler_.png (32,059 bytes)

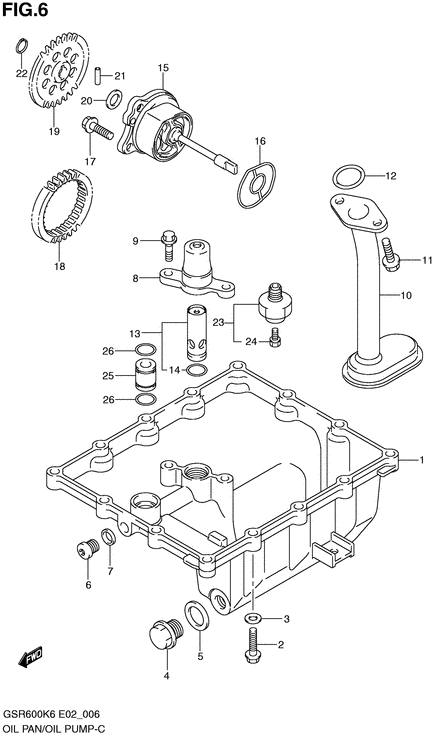

DigitalMy 2018-02-28 09:35 administrator	GSR600_oil_pan_.png (30,881 bytes) GSR600_oil_pan_.png (30,881 bytes)
