View Issue Details
ID | Project | Category | View Status | Date Submitted | Last Update |
---|---|---|---|---|---|
0000252 | vehicle service | Toyota SERA | public | 2017-12-30 01:56 | 2020-09-15 01:20 |
Reporter | DigitalMy | ||||
Priority | normal | Severity | major | Reproducibility | N/A |
Status | resolved | Resolution | fixed | ||
Summary | 0000252: Broken vacuum sensor Sera | ||||

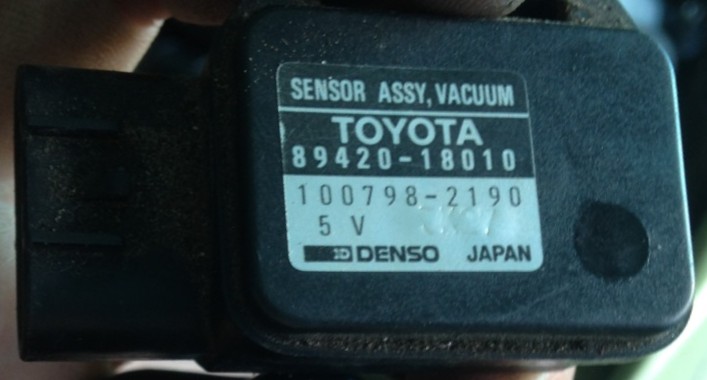

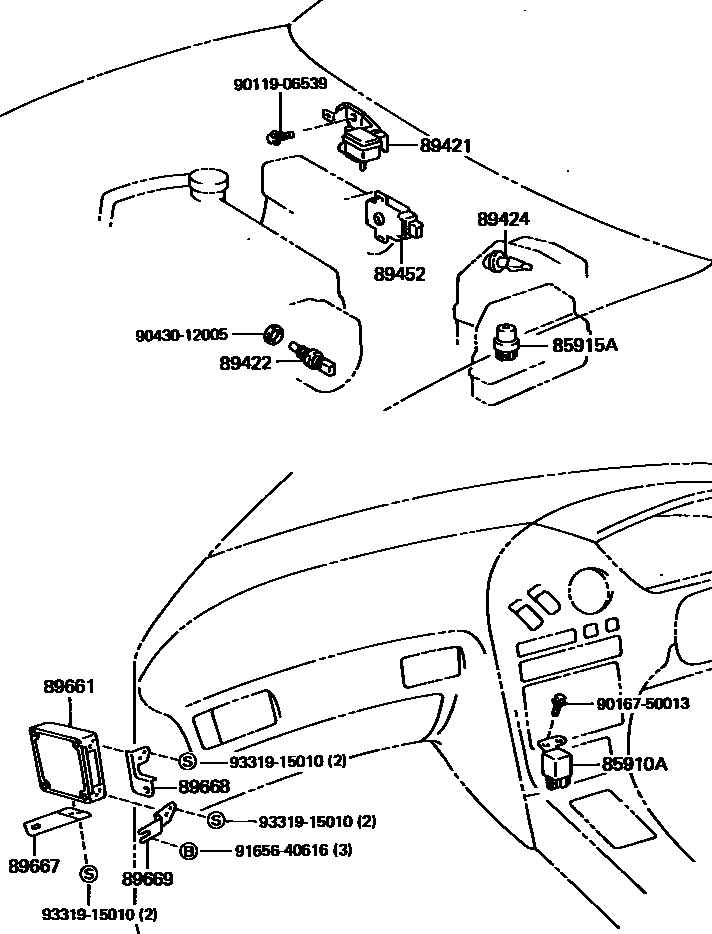

Description | located under hood upper center of windshield side Toyota 89420-18010 Denso 100798-2190 5V Sensor assy vacuum | ||||
Tags | No tags attached. | ||||
|

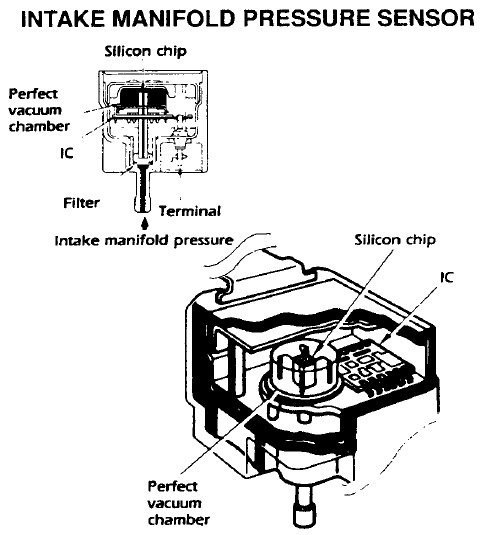

part 89421 SENSOR ASSY, VACUUM (FOR E.F.I.), Manifold absolute pressure (MAP) type, can measure only values below 1.0at(bar), does not fit turbo, has 3-pin connector, gives analog level from 0V to 5V 89420-18010 model is ised in SERA only Replaced from other car original, glued broken one also (for donor car). |
|
|
|
|
|
|
|

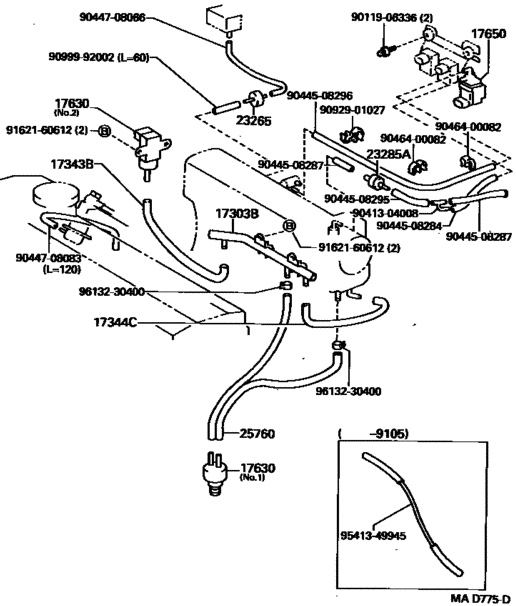

There are two valves (duty vacuum switching) near sensor: 17650 VALVE ASSY, VACUUM SWITCHING /90910-12121 (same EL43 EL44 has) 88691 valve magnet (for idle up device) LH /88691-18010 /90910-12046 RH /88691-17030 |
|
|
|

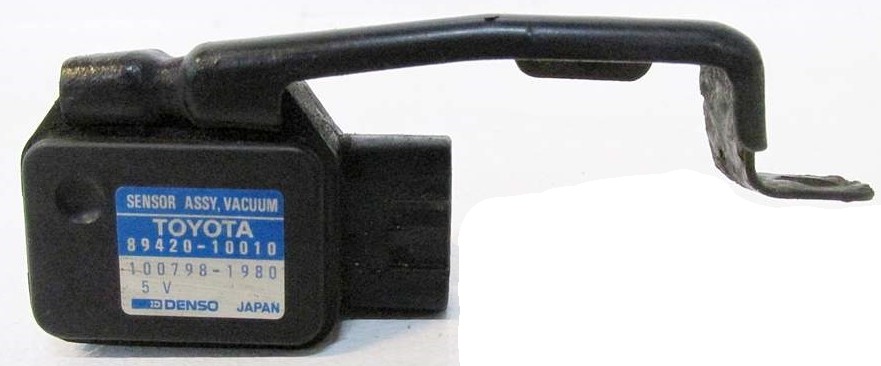

2020-09-13: found this sensor makes over-speeding engine, but there is hardly any original sensor available on market at good price, but another part from Toyota Starlet EP82 /89420-10010 looks very similar |
