0000261: Add bluetooth amplifier motorcycle speakers

ID	Project	Category	View Status	Date Submitted	Last Update

0000261	vehicle service	Suzuki GSR400	public	2018-03-13 18:51	2019-09-26 00:19

Reporter	DigitalMy
Priority	normal	Severity	minor	Reproducibility	N/A
Status	assigned	Resolution	open

Summary	0000261: Add bluetooth amplifier motorcycle speakers
Description	Locate in the central handlebar case (3D print this): 1. amplifier for existing speakers 50W 12V / with bluetooth and 3.5mm jack 2. smartphone holder / with charger cable
Tags	No tags attached.

DigitalMy 2019-08-01 13:17 administrator ~0000797	smartphone size 178mm74mm9mm amplifier size 83mm*51mm18mm

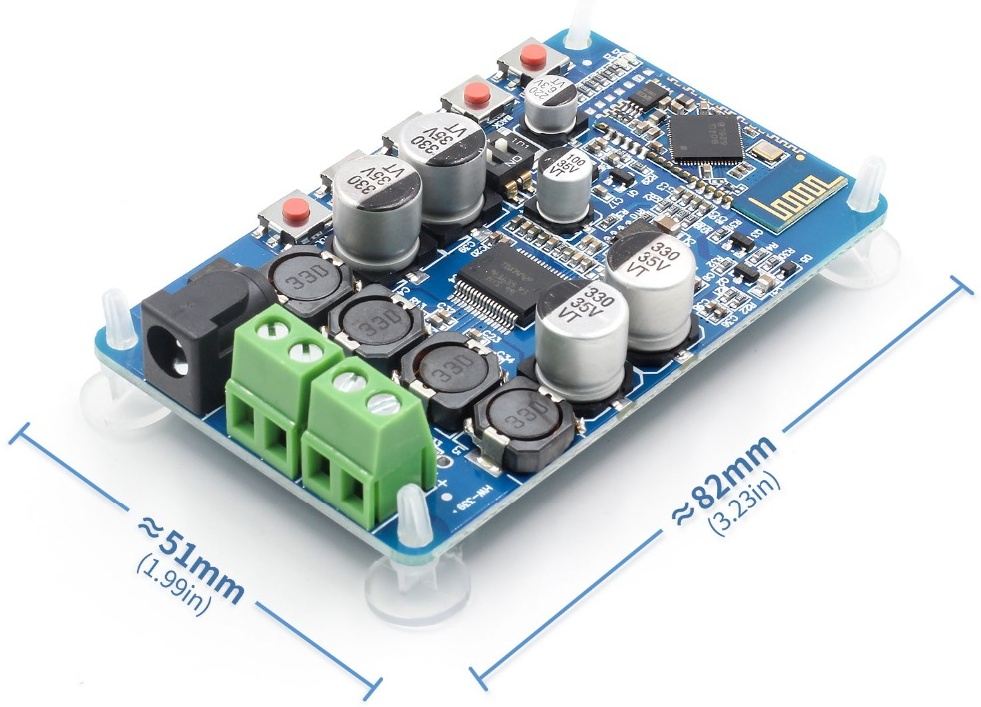

DigitalMy 2019-09-26 00:12 administrator ~0000823 Last edited: 2019-09-26 00:19 View 2 revisions	Got TDA7492P chip based board HW-339 with CSR8635 bluetooth (wireless audio profiles supported) has 5 buttons : play + back + next + volume_up + volume_down power: diameter 2.1mm interface DC 09V~24V power supply for sound system core of motorcycle amplifier-TDA7492P-CSR8635.jpg (178,745 bytes) amplifier-TDA7492P-CSR8635.jpg (178,745 bytes)
