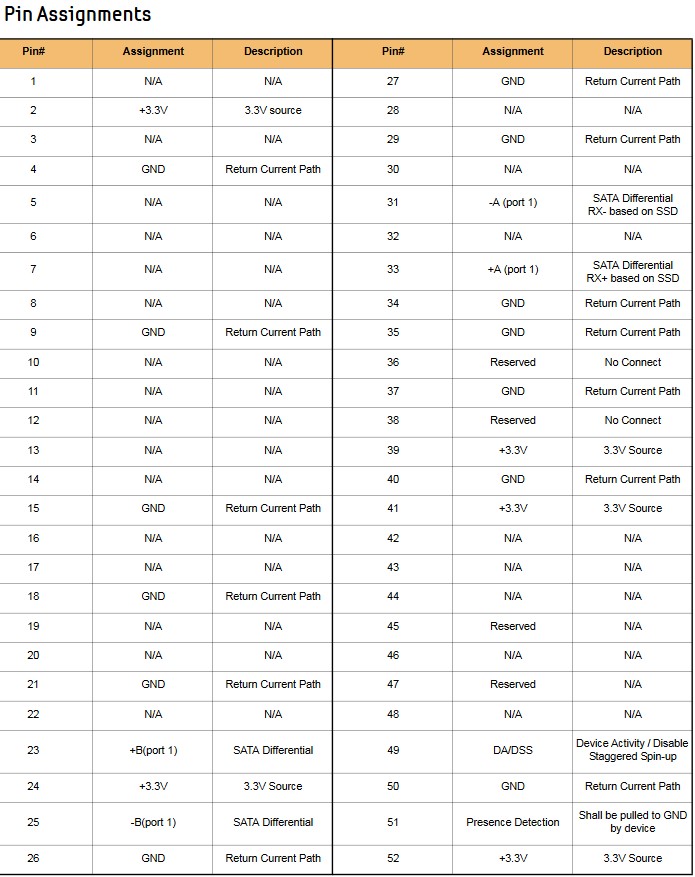

Required interface: mSATA (mini-SATA) interface 52 pin (16+36) mini-PCI-express edge PCB connector type (form factor) 16pin side - has only 3.3V power 36pin side - has 3.3V power and SATA data a lot of pins unused List of test storage devices: Samsung 860 EVO [MZ-M6E500BW] Kingston Samsung MZMPC032HBCD We know that SVT11-SVT14, SVD11 laptops do use mSATA SSD, tested - worked fine |
|
|
|
|
|
|
In slot 1245 on MBX-262 1.1 Found usb connecti ity nly on pins 36 38 + power 3.3V |
- Anonymous
