View Issue Details
ID | Project | Category | View Status | Date Submitted | Last Update |
---|---|---|---|---|---|
0004349 | vehicle service | Suzuki GSR400 | public | 2021-05-03 12:01 | 2021-05-08 12:44 |
Reporter | DigitalMy | ||||
Priority | normal | Severity | minor | Reproducibility | N/A |
Status | assigned | Resolution | open | ||
Summary | 0004349: Add new key to GSR400 immobilizer | ||||
Description | Suzuki motorcycle advanced immobilizer can save up to 4 transponder IDs in ECM memory. | ||||
Additional Information | GSR400 had two variations of ECM (ABS does not matter, it is independent system from engine) K6 model /32920-12H00 K9 model /32920-12HA0 | ||||
Tags | No tags attached. | ||||
|
GSR600_Suzuki_immobilizer.pdf (953,737 bytes) |
|
For original diagnostic Suzuki provides /09904-41010: SDS set tool and 99565-01010-007: CD-ROM Can clear the DTC |
|

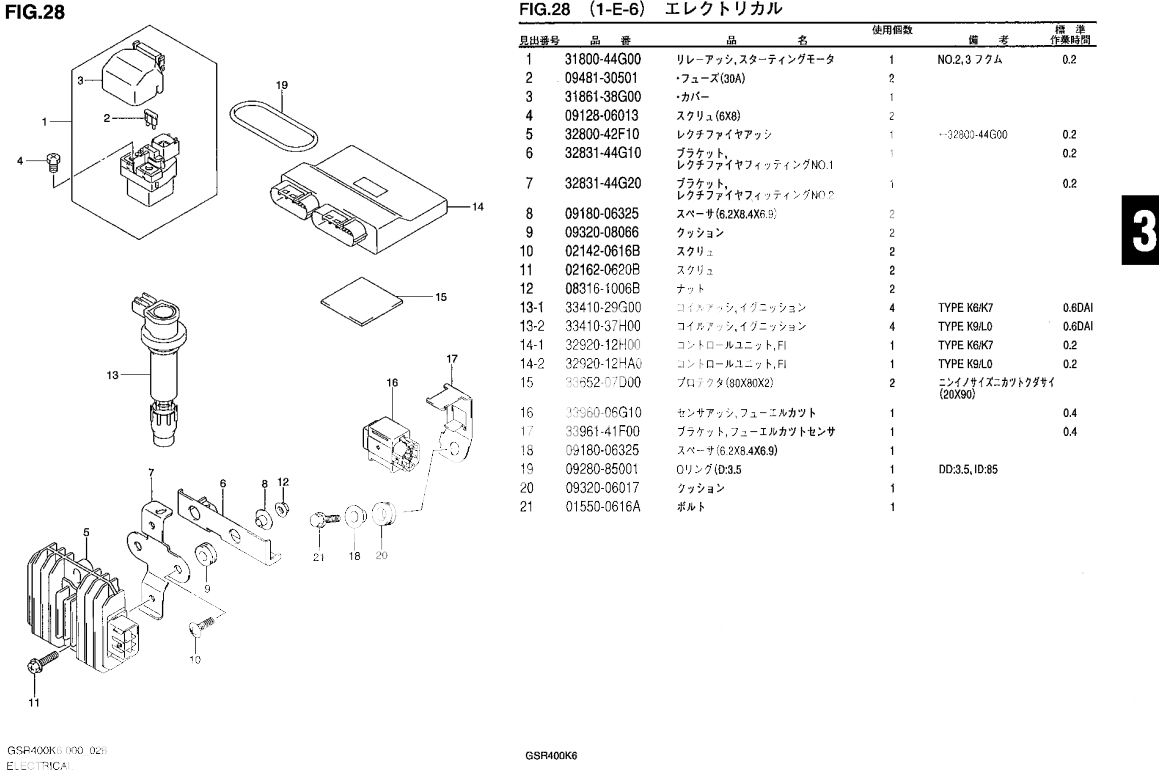

In opposite to Suzuki models GSR400 (code "12H.."), GSR600 ECMs have code "44G.." GSR400K6_28.png (374,143 bytes) |
