0004380: Video surviellance cameras streams

ID	Project	Category	View Status	Date Submitted	Last Update

0004380	Networks	[All Projects] Special	public	2021-12-05 20:14	2025-05-19 20:23

Reporter	DigitalMy
Priority	normal	Severity	minor	Reproducibility	have not tried
Status	assigned	Resolution	open

Summary	0004380: Video surviellance cameras streams
Description	Set video cameras in IP network. Use D-link DCS- models as default. New cam get 2mpx or better resolution.
Steps To Reproduce	For camera model DCS-2230 stream URL is: rtsp://user:pass@10.17.177.155:554/live1.sdp
Tags	No tags attached.

DigitalMy 2021-12-05 20:16 administrator ~0007116	DCS-7000L got 4pcs installed inside and outside (under roof) 720p devide use motion detection mode for recording 1) video_SD profile for local records 2) video profile for server records

DigitalMy 2022-05-10 23:52 administrator ~0008163 Last edited: 2022-05-13 21:43 View 5 revisions	Got DCS-6112 A2 for test D=130mm round internal LAN port PoE 1920x1080 12V 4.4W no power up with LAN POE +12V DC because it must be IEEE 802.3af PoE power source (802.3at Type 1) 44.0–57.0 V now powers only from DC IN connector +12V Tested 48V DC PoE works fine Got DCS-6112V works fine for recording to SD, but no motion detection It uses .mov format on web config page

DigitalMy 2022-05-13 21:44 administrator ~0008164 Last edited: 2022-05-13 22:07 View 2 revisions	Got error 404 (not found) for main page on port 80 Connected to port 21 as admin root::0:0::/mnt/ramdisk:/bin/sh admin::0:0:83a23ab2f31bd7263c63ae6b97e0638d:/mnt/ramdisk:/bin/sh it has protocols enabled: landap 62976/udp telnet ftp

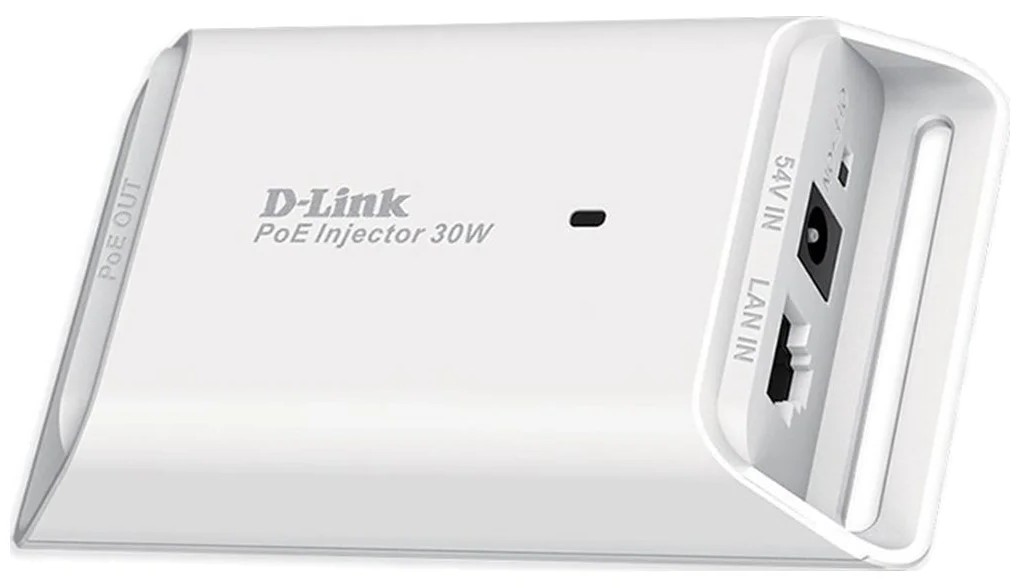

DigitalMy 2022-11-02 03:29 administrator ~0008191 Last edited: 2024-08-07 13:27 View 2 revisions	Tested microcontrolled PoE adapters: D-Link DPE-301GI 54V D-Link DPE-101GI 48V input power plug round 5.5mm*2.1mm DC works fine DPE-301GI.jpg (43,510 bytes) DPE-301GI.jpg (43,510 bytes)
