0004398: Replace front arms with ball joint in DA64V

ID	Project	Category	View Status	Date Submitted	Last Update

0004398	vehicle service	Suzuki EVERY	public	2022-04-24 12:37	2024-06-09 11:00

Reporter	DigitalMy
Priority	normal	Severity	minor	Reproducibility	always
Status	resolved	Resolution	fixed

Summary	0004398: Replace front arms with ball joint in DA64V
Description	right front spherical bearing - replace as part of Suzuki arm assy /45201-68H00 or /45201-68H02 compatible replacement models HCA-6004R V91131R SAS132R and separately SB-S132 (555) ball joint for press D=40mm d=15mm
Tags	No tags attached.

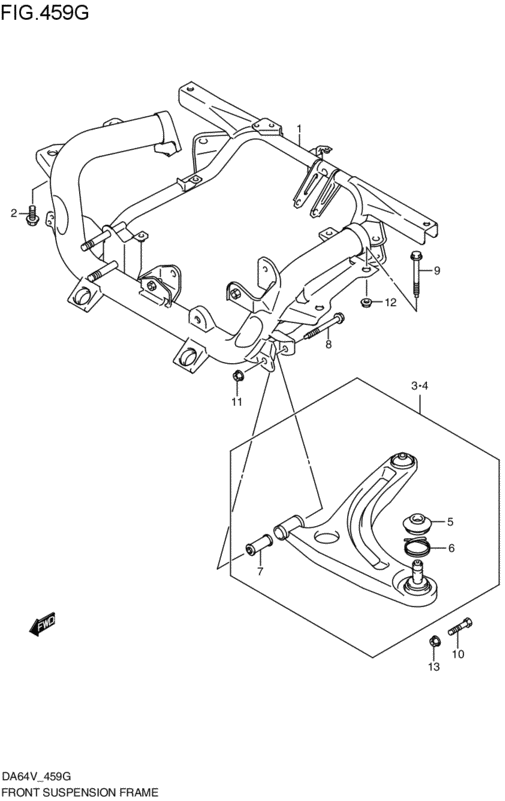

DigitalMy 2022-04-24 12:37 administrator	DA64V_459G_front_arm.png (27,767 bytes) DA64V_459G_front_arm.png (27,767 bytes)

DigitalMy 2024-06-09 11:00 administrator ~0014274	2022: Replaced HCA-6004R and HCA-6004L =5000 RUR
