Failed to execute manual: https://git.openwrt.org/?p=openwrt/openwrt.git;a=commitdiff;h=78110c3b5fce119d13cd45dadd33ca396c8ce197 Firmware Version:?1.7.0 0.9.1 v0001.0 Build 220826 Rel.58057n Hardware Version:?Archer MR600 v2 00000003 spam a lot to console Firmware Version:?1.6.0 0.9.1 v0001.0 Build 220105 Rel.58321n same error, but much better - no spam and cannot downgrade lower to 1.5.0 (made by Tp-link on purpose) rsl_sys_verifyFirmware 2425: Firmware Additional HardwareVersion check failed but can reset power after login, and it switched to U-Boot console! |
|
|
Found supported commands in main console: ls cat env top |
|
|

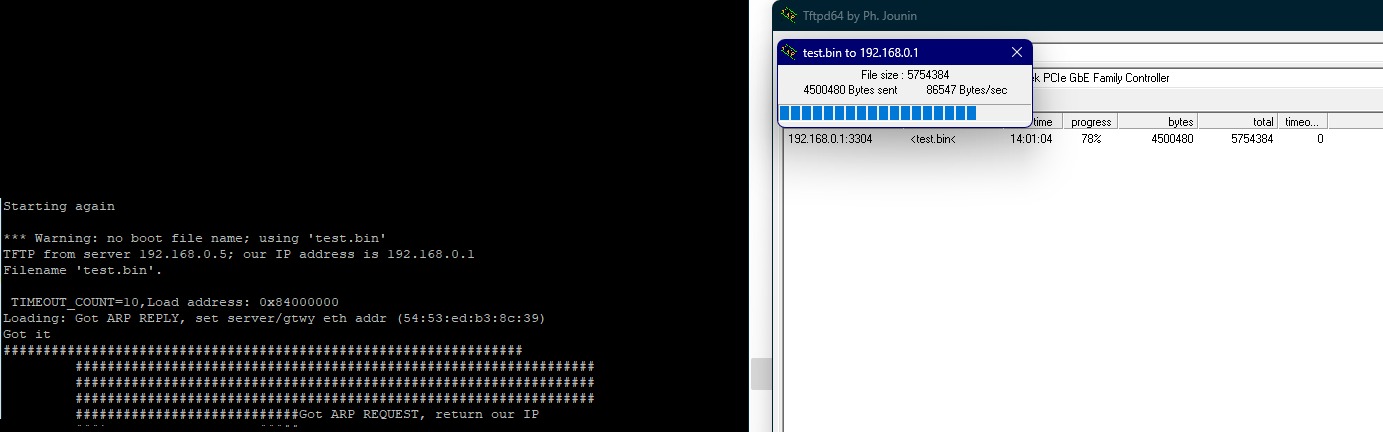

TFTP server load image test.bin Connected to the serial console: RX TX GND Fast interrupt the boot procedure after power on (type `tpl`) Server (PC, static) 192.168.0.5/24 Client (router, default) 192.168.0.1/24 tftpboot bootm change PC adapter to DHCP, login to web interface 192.168.1.1 and update firmware openwrt-23.05.4-ramips-mt7621-tplink_mr600-v2-eu-squashfs-sysupgrade.bin
|
|
flash manufacture id: 20, device id 70 18 find flash: XM25QH128A *** Warning - bad CRC, using default environment |
|
|
After add protocols opkg install luci-proto-qmi kmod-usb-net-qmi-wwan uqmi config interface 'wwan' option proto 'qmi' option device '/dev/cdc-wdm0' option apn 'internet' option pdptype 'ip' option dhcp '0' uqmi can manage modem: uqmi -s -d /dev/cdc-wdm0 -t 1000 --uim-get-sim-state uqmi -d /dev/cdc-wdm0 --get-data-status uqmi -d /dev/cdc-wdm0 --get-signal-info |
|
|

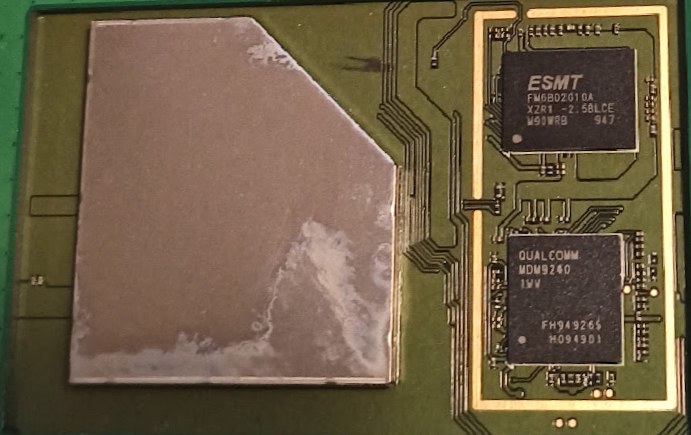

MR600v2 internal modem test Android device Qualcomm MDM9240 integrated in MR600 routers by Tp-link it has cdc-wdm0 interface for data and no serial USB port for communication, but connected as USB: cat /sys/kernel/debug/usb/devices opkg install kmod-usb-serial opkg install kmod-usb-serial-option opkg install kmod-usb-serial-wwan opkg install kmod-usb-net-qmi-wwan opkg install kmod-usb-serial-qualcomm opkg install uqmi opkg install luci-proto-qmi opkg install picocom opkg install adb adb shell have inside Android... ttyGS0 ttyHS0 ttyHSL0 opkg install modemmanager mmcli -L mmcli -m 0 mmcli -m 0 -e To get list of SMS: mmcli -m 0 --messaging-list-sms To read a specific SMS: mmcli -m 0 --sms 1 Create and send message: mmcli -m 0 --messaging-create-sms="text='Hello world',number='+1234567890'" mmcli -s 1 --send mmcli -m 0 --command='AT^DEBUG?' mmcli --modem 0 --3gpp-scan --timeout=300
|
|
in adb shell: netstat -atnp df -h ps -T showed that "getty -L ttyHSL0 115200 console" cat /misc/imei ls /dev adb shell uci show product.info |
|
|
activate USB serial devices: echo "05c6 9025" > /sys/bus/usb-serial/drivers/option1/new_id list them: ls /dev/ttyUSB* |
