| Summary | 0007516: Restore fuse box in EXY10 | ||||
| Description | There are several fuse boxes and locations: F01) in cabin (right side) near pedal accelerate J/B No.1 has 8pcs fuses for interior (salon) and more F02) under hood (left side) near battety, R/B No.2 has 11pcs fuses for engine and more | ||||
| Tags | No tags attached. | ||||
|
|

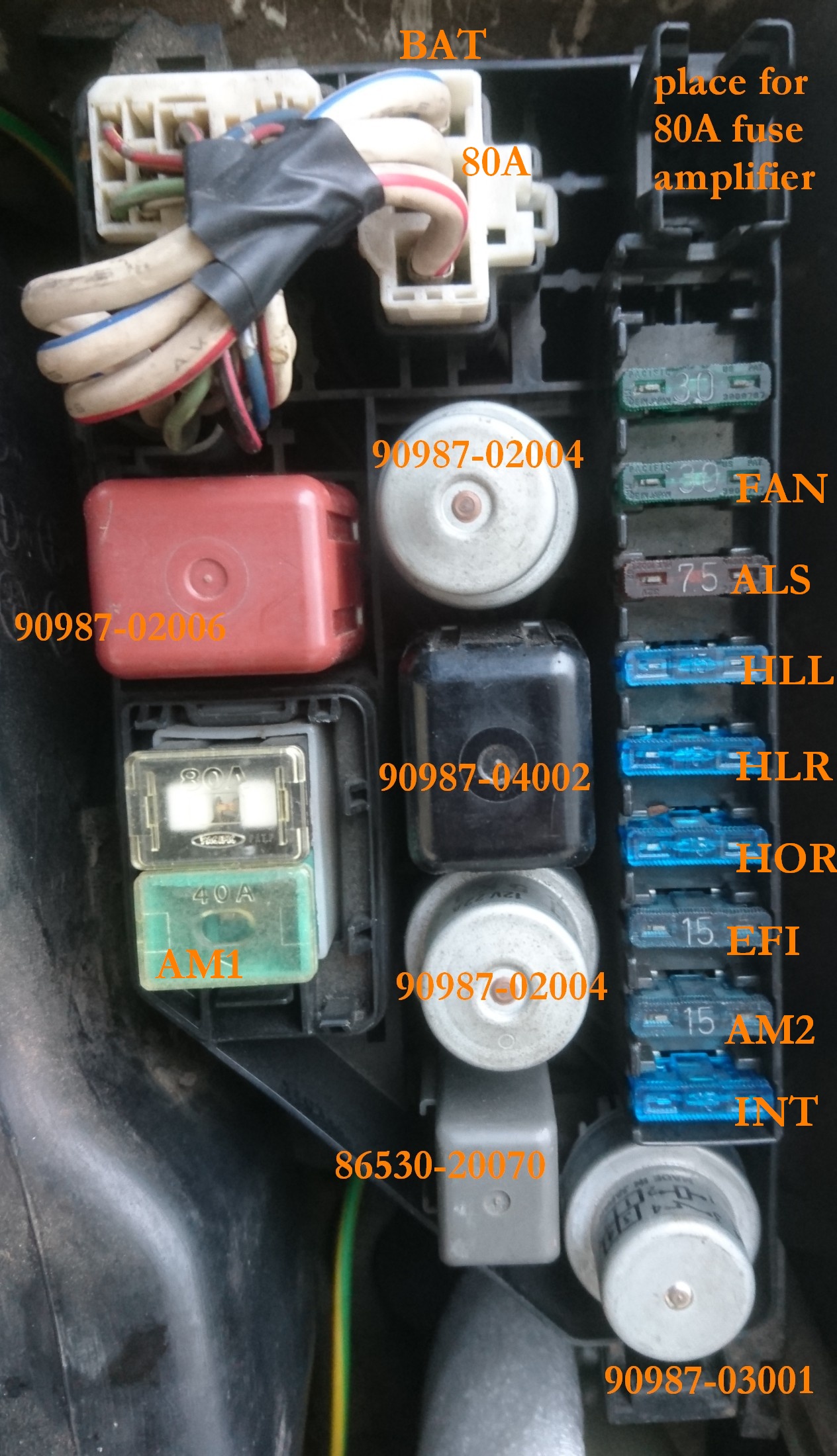

Fuse slots inside hood box (R/B No.2): F00) empty in corner, designed for ABS (FL 50A) F01) not connected, designed for carrying spare fuse F02) condenser fan 30A F03) radiator fan 30A F04) alternator sense 7.5A (IC regulator) F05) headlamp left 15A F06) headlamp right 15A F07) horn and hazard 15A F08) EFI 15A (computer) F09) AM2 15A to lock switch (ignition), including IG2 line out F10) internal cabin accessories 15A F11) alternator charge 80A FL F12) AM1 40A FL to lock switch and power distribution box, including ST1 (starter) and IG1 and ACC lines out Fuse_relay_box_EXY10_SERA1990.jpg (595,157 bytes) |
