View Issue Details
ID | Project | Category | View Status | Date Submitted | Last Update |
---|---|---|---|---|---|
0000122 | vehicle service | Toyota SERA | public | 2014-07-23 00:18 | 2018-02-21 10:29 |
Reporter | DigitalMy | ||||
Priority | normal | Severity | minor | Reproducibility | have not tried |
Status | resolved | Resolution | fixed | ||
Summary | 0000122: Front left wheel: all 4 bolt broken and coil EXY10-0004653 | ||||
Description | BOLT, HUB (FOR FRONT AXLE) /90942-02047 buy -> Febest 0184-005 *4 -> done SPRING, FRONT COIL, LH /48131-16660 get from EXY10-0005136 (there put new one) | ||||
Tags | No tags attached. | ||||
|

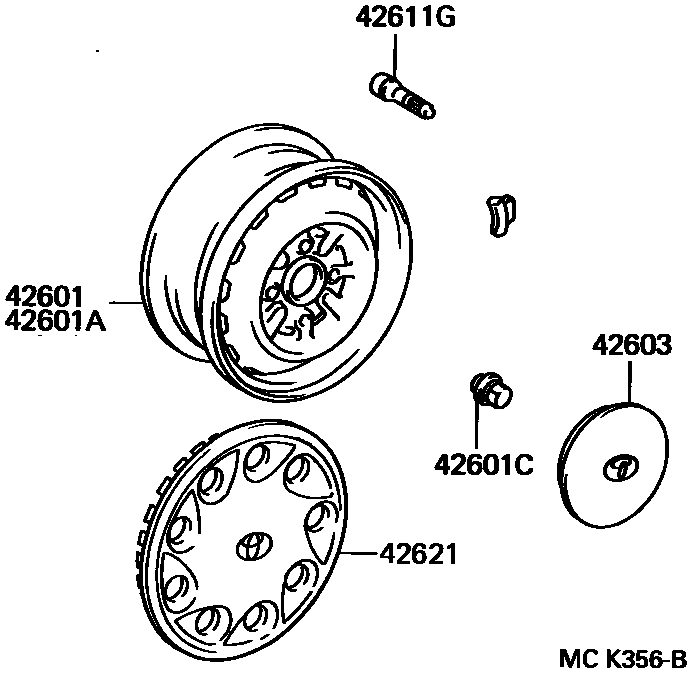

need 1* NUT, HUB (FOR AXLE) (wheel disk nut) /90942-01007 S21mm*H17mm-M12*1.5mm /Febi 11939 -> done nut for original aluminium wheel disc /90942-01062 (Masuma MLS-148) M12*1.5mm -> SERA disk part /42611-18020 (silver ??? ??-? 14"*5.5J) |
|
Wheels LS installed, but need to move second Tokico shock absorber |(R)| from other car |
|

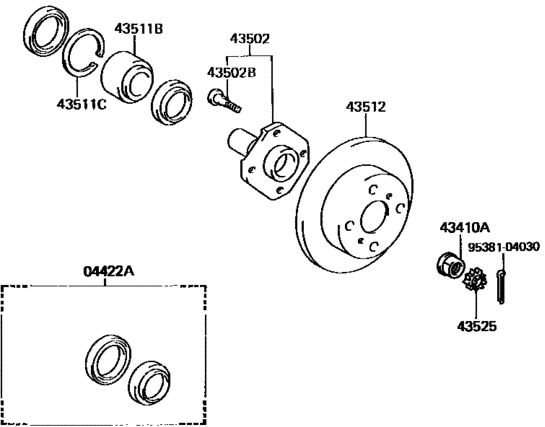

The central hub nut is 43410A NUT (FOR AXLE HUB & DRIVE SHAFT SETTING) /90170-19001 (SERA01) M19*1.5mm ? black had this type: wrench 30mm (most of hub nuts in stock of this size) ? non-flanged, has separate washer /90179-22020 (SERA02 SERA03) compatible original newer replacement /90178-22001 (black) M22*1.5mm ? W=30mm (2018, white - both sides), flanged nut /compatible Dorman 615-119 flanged hex spindle nut M22-1.5, wrench 30mm (and Dorman 05105 is nut in set with /43525-20030 CAP, FRONT WHEEL ADJUSTING LOCK and /95381-04030 cotter pin) wrench 32mm ? On other models, found on black left, possibly from cy D=23.5mm to 25.5mm approximately on FRONT AXLE HUB splines cv end lock /43525-20030 CAP, FRONT WHEEL ADJUSTING LOCK to be used |
|
|
|
|
|
|
