View Issue Details
ID | Project | Category | View Status | Date Submitted | Last Update |
---|---|---|---|---|---|
0000124 | vehicle service | Toyota SERA | public | 2014-07-23 23:47 | 2018-01-31 17:07 |
Reporter | DigitalMy | ||||
Priority | normal | Severity | minor | Reproducibility | always |
Status | assigned | Resolution | open | ||
Summary | 0000124: Make double sided exhaust pipe in rear bumper on EXY10 | ||||
Description | plus fix with new SUPPORT, EXHAUST PIPE, NO.4 /17565-11010 or 17565-63120 distance to frame -> replacement got -> Bosal 255-381 (2) | ||||
Tags | No tags attached. | ||||
|
|
|
And replace catalytic module: CONVERTER ASSY, W/CATALYST Toyota /18450-16240 or /18450-11130 -> 30K RUR emex offer... the same for CARINA COROLLA CORSA/TERCEL CYNOS SPRINTER |
|
Change 2 gaskets as well: GASKET, EXHAUST MANIFOLD TO HEAD - it is metal double \17173-11050 /repalce with Elwis royal 0352824 GASKET, EXHAUST PIPE - two rings with metal cover \90917-06039 /replace with Masuma MOS-109 D=44mm\57mm H=5mm problem is gas out from here because stud has lost thread \90116-10087 BOLT, STUD (FOR MANIFOLD TO EXHAUST PIPE) they are 3pcs 47 х M10 х 1.25 |
|

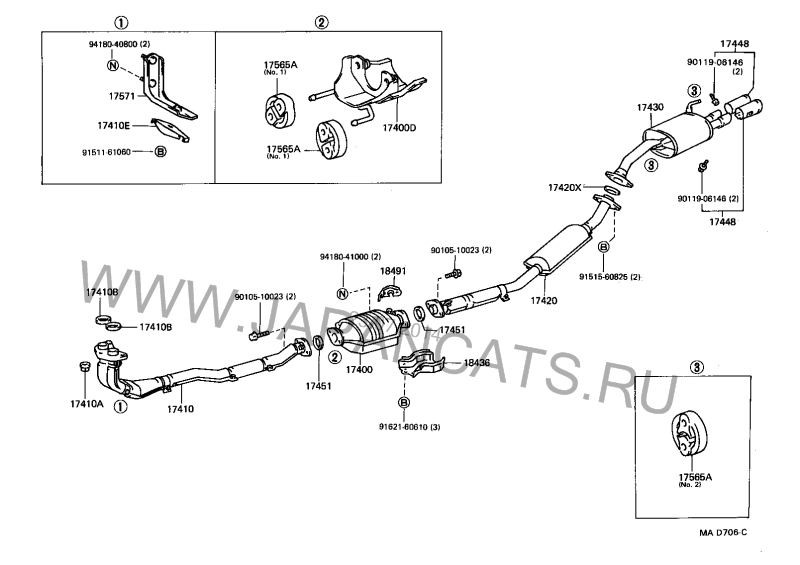

Missing PIPE ASSY, EXHAUST, TAIL part, /17430-11450 this format was used on ??? ?? model only. and make double-sided short pipe out, hidden. Original ??? ?? exhaust tail has 2 pipes, need one of them turn to the left side, add rubber silentblock there. Now installed tail from other car (old). Missing flange on mid-pipe. |
|
|
