0000125: Reset Lenovo ThinkPad X200 supervisor password

ID	Project	Category	View Status	Date Submitted	Last Update

0000125	General	hardware	public	2014-08-09 15:32	2014-08-09 15:37

Reporter	DigitalMy
Priority	normal	Severity	block	Reproducibility	N/A
Status	assigned	Resolution	open

Summary	0000125: Reset Lenovo ThinkPad X200 supervisor password
Description	unknown password locked boot it is stored in EEPROM NXP P24S08 that has 8 pin soldering to MB Need 3 pin programmer connection: GND - negative ground SCL - clock line SDA - data line
Tags	No tags attached.

BuyTarget

DigitalMy 2014-08-09 15:32 administrator	rotated_eeprom.jpg (4,291 bytes) rotated_eeprom.jpg (4,291 bytes)

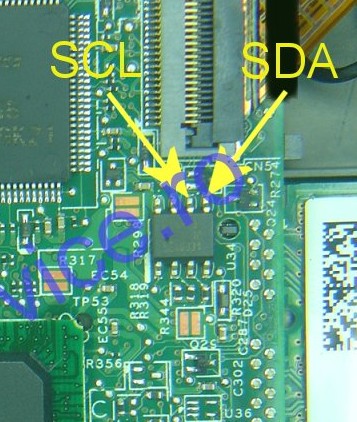

DigitalMy 2014-08-09 15:32 administrator	x200eeprom.jpg (64,092 bytes) x200eeprom.jpg (64,092 bytes)

DigitalMy 2014-08-09 15:37 administrator ~0000158	Arduino UNO R3 board has: GND - GND SCL - A5 SDA - A4
