View Issue Details
ID | Project | Category | View Status | Date Submitted | Last Update |
---|---|---|---|---|---|
0000146 | vehicle service | Toyota SERA | public | 2015-01-12 17:42 | 2021-11-21 18:07 |
Reporter | DigitalMy | ||||
Priority | normal | Severity | minor | Reproducibility | N/A |
Status | resolved | Resolution | fixed | ||
Summary | 0000146: Change engine oil Toyota Sera cars (periodic technical inspection and insurance) | ||||
Description | in EXY10 cars: change engine oil + replace filter \ 1. engine 5EFHE 1.1. filter /90915-03001 (use Bosch 0 986 452 028) 1.2. oil /10w40 (use BP Visco 7000 0w40) | ||||
Additional Information | starting from 2013 | ||||
Tags | No tags attached. | ||||
|

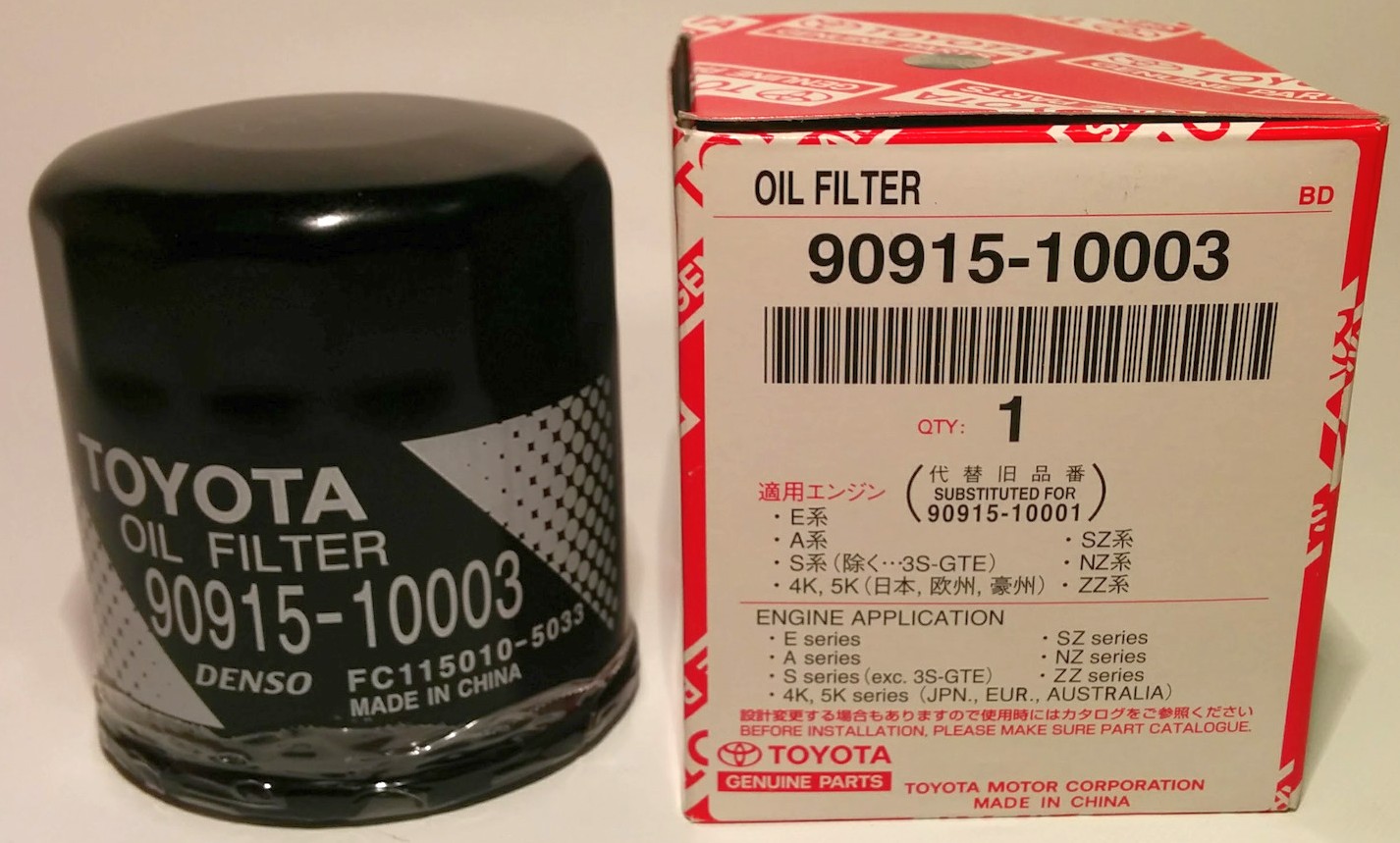

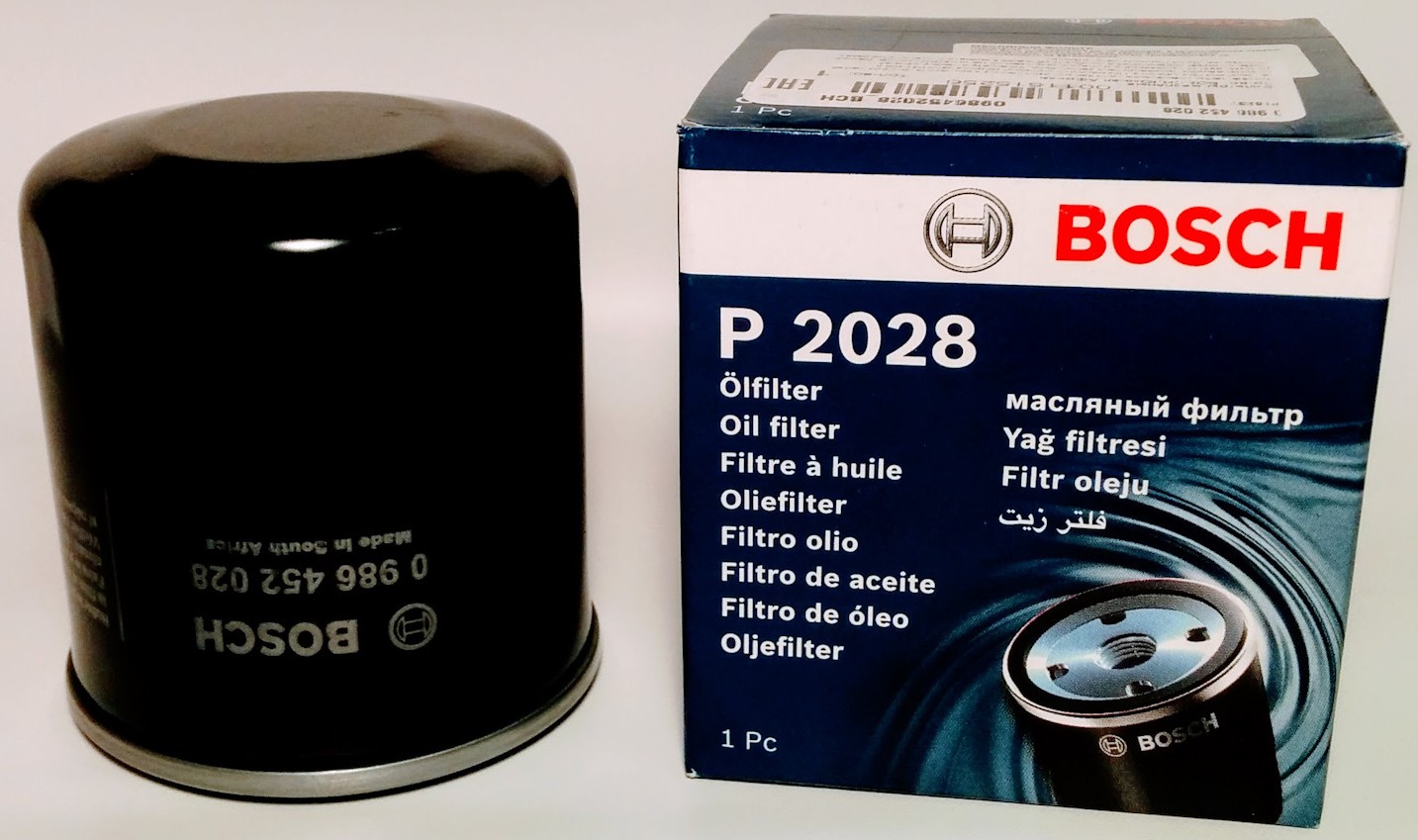

5E-FHE engine oil filter: Bosch 0986452028 - 14-hedron, 63.5mm wrench, near D=65mm - P2028 /replaced Filter has thread 3/4"-16UNF Diameter D=68mm (max) /65mm (body) /62mm (seal) /53mm (ring) H=76mm SERA03 oil filter /90080-91058 /90915-10001 and SERA01 /90915-03001 all replaced with Toyota /90915-10003 (year 2000-2017) Oil used SAE ~3L "BP Visco 7000 0W-40" (most car usage in cold season) : code for order /15805B for 4L or /15805A and 119368 for 1L This engine has 110hp and DOHC, up to 7200rpm. Designed for RON95 fuel. |
|
For oil change make vacuum machine, with adapters to 1. top to OIL LEVEL GAGE GUIDE replacing /15301-11040 (engine gage) 2. bottom to oil pan drain replacing PLUG (FOR OIL PAN DRAIN) /90341-12012 -> M12x1.25 screw 3. front to radiator replacing HOSE(FOR OIL COOLER INLET) /90445-15042 4. rear to transmission pan drain replacing PLUG SUB-ASSY, DRAIN (ATM) /90341-10006 -> M10x1.5 ? screw prefer 12V DC motor, but can use 220V AC vacuum pump for better result vacuum chamber will be used for ATF storage |
|
Transmission work is not stable with mixture of fluids. Wannable change to DEXRON-IIE type. |
|
|
|
|
|
|
|

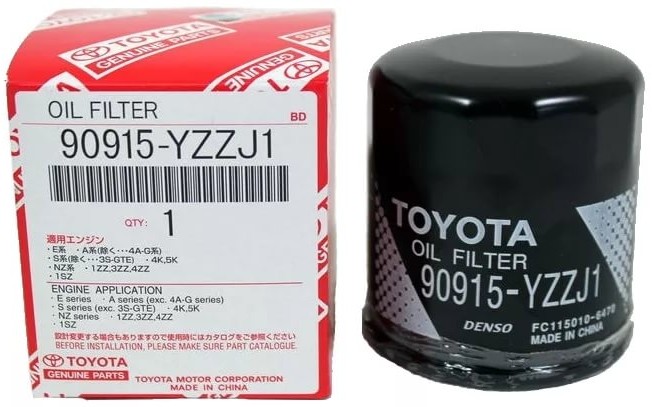

Latest original oil filters compatible are /90915-YZZJ1 and /90915-YZZE1 |
|
White Sera 2018-01-21: inspection, Yokohama tyres, 345000 km 2020-05-13: inspection, Yokohama tyres, 355000 km |
|
2021-09-16 Gray Sera got overfilled engine oil Valvoline VE11220 oil 0w-40 + C110 filter |
|
2021-11-21 Found replacement for damaged plug Stellox 7552508SX |
