ID | Project | Category | View Status | Date Submitted | Last Update |
---|---|---|---|---|---|
0000080 | vehicle service | Toyota SERA | public | 2014-02-06 01:26 | 2021-09-11 23:22 |
Reporter | DigitalMy | ||||
Priority | high | Severity | minor | Reproducibility | N/A |
Status | resolved | Resolution | fixed | ||
Summary | 0000080: Change transmission unit (+ oil and filter) on Toyota Sera EXY10 | ||||

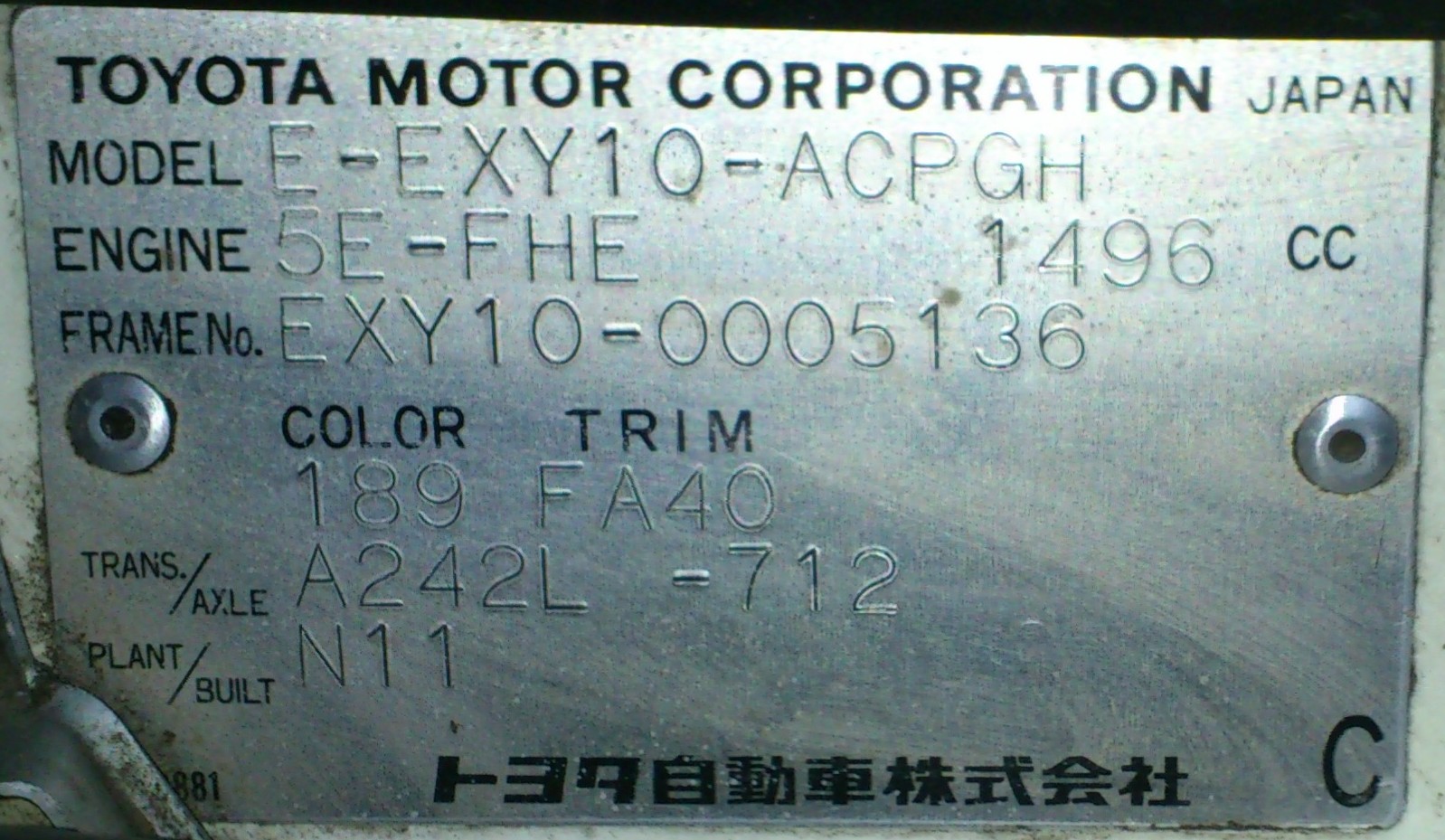

Description | This car has automatic transmission unit AISIN (type L - lock-up torque converter) model A242L Toyota transaxle A242L-712 on Sera EXY10 and Corsa EL41 EL43 EL44 A242L-01A on Tercel NL50 A242L-04A on Corsa NL50 A242L-03A on Corsa EL51 EL53 A242L-06A on Starlet EP91 | ||||
Additional Information | (5E-FHE compatible - "E" transmission units, most parts are the same) A242E-05A on EP91 /30510-10270 enclosure A242E-562 on EP91 EP82 A242E? on EL44 (5EFHE) /30510-16550 A244E-712 on EL44 (5EFHE) A244E-03A on Cynos EL54 (5EFHE) 2WD /30130-16680 *priority (EL54-DCPVH) A244E-05A on EP95 (4E) CYNOS EL44 01.1991 - 08.1995 _ EL44-DCPVH 01.1991 - 08.1995 CYNOS EL54 08.1995 - 07.1999 _ EL54C-DKPVH 10.1996-03.1999 CONTINUOUSLY VARIABLE TRANSMISSION, convertible top _ EL54-DCPVH 08.1995-07.1999 COUPE *most wanted parts donor for upgrade EXY10 CORSA/TERCEL 5EFHE 09.1990 - 09.1994 _ EL43-AEPVH _ EL43-AGPVH _ EL43-BEPVH _ EL43-BGPVH COROLLA 2 5EFHE 09.1990 - 09.1994 EL43-CGPVH SERA01 03.1990 - 05.1991 SERA02 05.1991 - 06.1992 SERA03 06.1992 - 12.1995 | ||||
Tags | No tags attached. | ||||
related to | 0000078 | assigned | DigitalMy | Recover cut off SWITCH, TRANSMISSION CONTROL and replace unit with ETC |
related to | 0000095 | progress | DigitalMy | Replace (fix) EXY10 car suspension broken after winter |
related to | 0000146 | resolved | DigitalMy | Change engine oil Toyota Sera cars (periodic technical inspection and insurance) |
|
|
Electronic of A242E transmission unit is not compatible with original A242L, but the same gears. Rates: 1: 3.643 2: 2.008 3: 1.296 4: 0.892 R: 2.977 M: 2.821 For transmission rebuild need gasket set /04351-10040 - expensive purchased shaft seals: Febest 95HBY-34540915R /installed with "new" unit Febest 95HBY-34630915L /installed with "new" unit possible future changes: SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) /90311-12002 SEAL, OIL (FOR FRONT OIL PUMP) /90311-38020 |
|

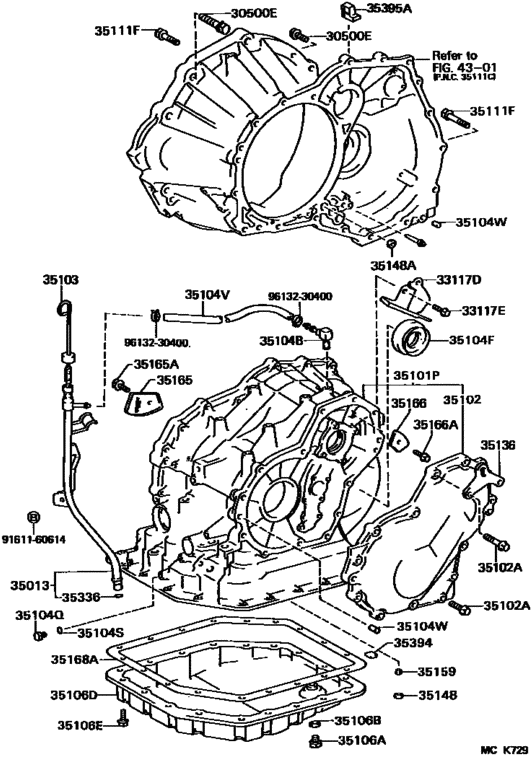

Going to replace with used trasmission assembly A242L. Replaced. Used filter SCT SG 1018 (in place of /35330-12020 STRAINER ASSY, VALVE BODY OIL) "New" unit had broken PLUG, BREATHER, NO.1 (ATM) /90930-03101 - taken from old transmission and replaced Replaced, fixed central brake backlash, but got extra blows on shifting. Need extra tests of transmission. -> Need radiator cleaning -> Need full oil replacement Filters: NVI NT016 Azumi JT21387K JS Asakashi JT387K SAT ST3533012020 |
|
kick shifting to be tested... and should be fixed: A242L-712 ("1985-1999") should have two solenoid (2^2 variants = 4-speed) automatic L trans/axle terminating "A" or "2" in "axle" means free (not locked) differential. used SWITCH, TEMPERATURE /89427-12070 (SERA01 SERA02 EL43) /89427-10040 (SERA03) |
|
|
|
Suspect wrong throttle position |
|
Original Sera has version with manual transmission C155 Tercel 4WD has manual transmission for 5E-FE model C50F-06A |
|

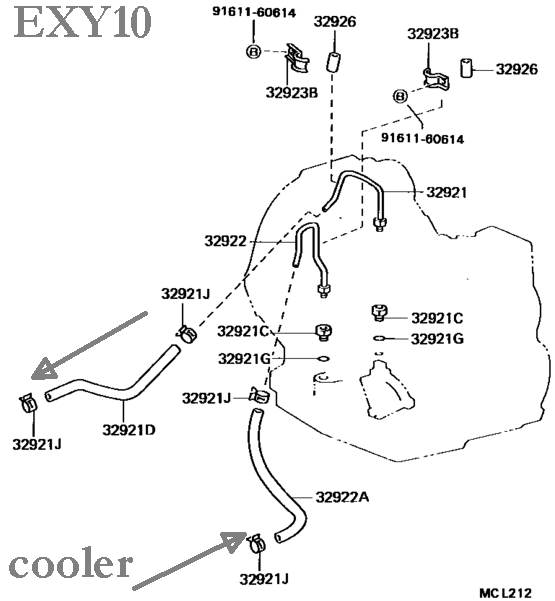

EXY10 has transmission automatic A242L with 2.1. filter /35330-12020 (use SCT SG 1018) -> replacement H&Q 2001-1099 2.2. oil /Dexron II (use THK ATF IID) replacement of filter requires oil pan removal it has w=10mm bolts to be fastened with torque 5 N*m (according to manual) I used 8 N*m force... automatic transmission liquid ATF may be used later For change disconnect hoses from radiator. left line from cooler flows ATF to transmission unit lower input right line to cooler flows ATF from transmission unit higher output |
|
|
