View Issue Details
ID | Project | Category | View Status | Date Submitted | Last Update |
---|---|---|---|---|---|
0000078 | vehicle service | Toyota SERA | public | 2014-02-05 22:04 | 2020-09-26 18:58 |
Reporter | DigitalMy | ||||
Priority | normal | Severity | minor | Reproducibility | N/A |
Status | assigned | Resolution | open | ||
Summary | 0000078: Recover cut off SWITCH, TRANSMISSION CONTROL and replace unit with ETC | ||||
Description | Find the place to connect that switch back, parts 84722F it is a part of OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION | ||||
Tags | No tags attached. | ||||
|
|
|

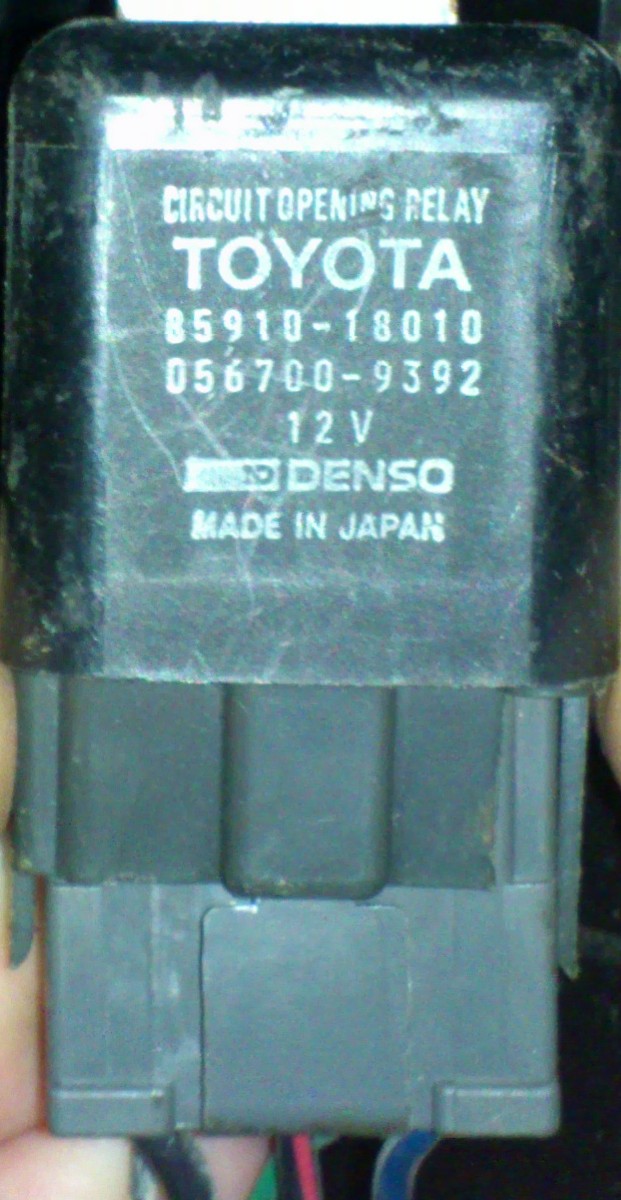

Found 85910-18010 inside over the radio, but it is RELAY ASSY, CIRCUIT OPENING (FOR EFI)... not transmission part unique for EXY10 Found 2 cut cords near the BLOCK, JUNCTION (82671-10020). Compatible fuse box /82671-10021 possibly those wires are connected to this overdrive button... -> research need soldering with button and insulation, cover found one yellow wire in mid panel, disconnected |
|
"L" type transmission installed is not electronic controlled like "E" type, this button implements manual control over speed number 4 disable 4th speed/enable 4th speed = main function |
|

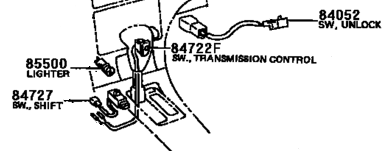

On the changed meter panel have indicator "O/D OFF" on. button "overdrive" switch located in handle of selector, goes to 4-pin connector (another 2-pins are bulb), near Computer, shift lock control /85933-10010 |
|

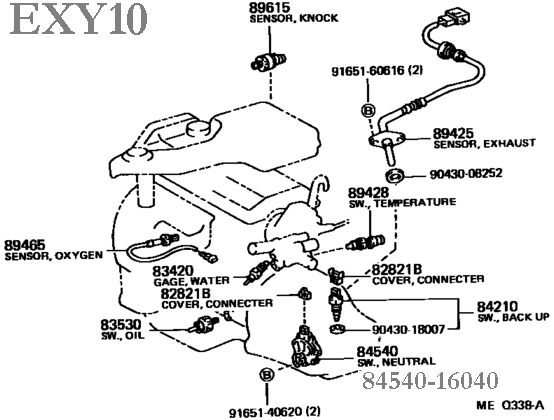

on A242L-712 have module (T08 selector position) neutral switch , SERA01 SERA02 /84540-16030 , SERA03 /84540-16040 from diagram 84-01: SWITCH & RELAY & COMPUTER (car model EXY10-ACPGH) |
|

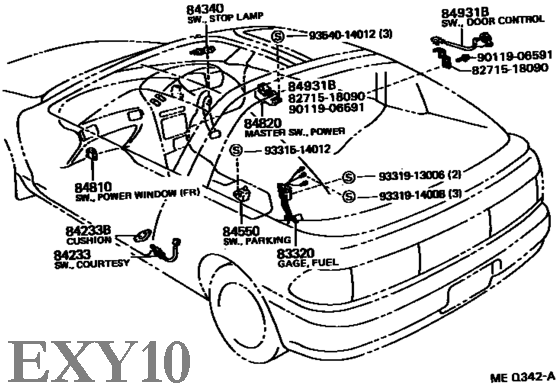

As expected, MCU should read the following data: speed sensor(s) {2}: No. 1 speed sensor is mounted on rear of instrument panel; No. 2 speed sensor located on transmission temperature coolant sensor /89422-20010 or /83420-16020 /89428-20060 or /89428-12160 throttle position sensor: has 3 pin socket (original EXY10) /89452-14020 (SERA01 and SERA02) or /89452-12060 (SERA03 and many other) selector position (neutral) /84540-16030 /84540-16040 stop pedal switch SERA01 SERA02 /84340-10020 (replaced /84340-28010) or SERA03 /84340-32090 (replaced /84340-42010) (other Toyota switch models /84340-06020 and /84340-28010) -> replaced switch stop lamp /84340-32090 overdrive switch /84722-18010-03 /84722-26080 |
|
For "E" transmission need extra wiring to: SWITCH ASSY, PATTERN SELECT /84720-32041 (EL43 or EL44) /84720-16030 (EL54) SENSOR, SPEED /89411-20040 ROTOR, SENSOR /89414-12010 As for AT and engine mounting brackets: 1st: original part replacement 12371A INSULATOR, ENGINE MOUNTING, REAR /12371-11360 is given for EXY10 the same as for EL54 and EL43 2nd: 12362 INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) |
|

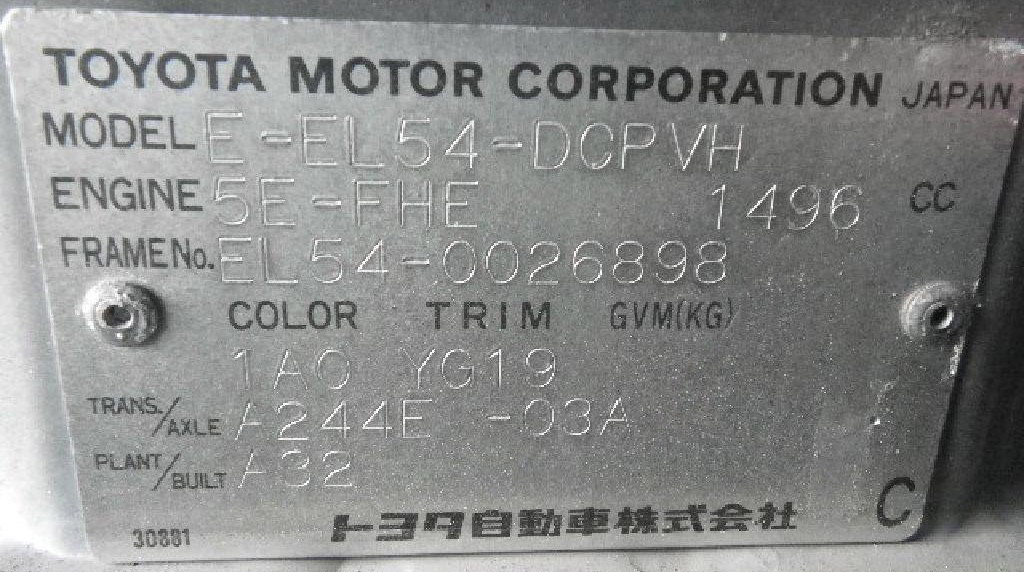

swap-ready 89661 COMPUTER, ENGINE CONTROL list: From Cynos EL54 (EL54-DCPVH and EL54C-DKPVH; GEAR SHIFT TYPE: 4FC; AT should be A244E): /89661-16450 (211000-3790) -> big size -> got this *priority, newmost (2?? ????) but several extra labels had seen found on EL54 89661-16450 "engine control" units: "E c5a 89660-16550" (some computers have "LF" label... possible for A132L or A242L mentioned in part catalogs). from COROLLA2 CORSA/TERCEL EL43, CYNOS EL44 (EL43-CGPVH and EL43-AEPVH and EL43-AGPVH and EL43-BEPVH and EL43-BGPVH and EL44-DCPVH 12.1992-08.1995) /89661-16240 (211000-0970) and earlier (MA-6300; has extra 12P) -> same size, but hard to find on market There are ECT (electronic controlled transmission) models also: from CYNOS EL44 (5EFHE EL44-DCPVH 01.1991-12.1992) /89661-16130 (MA-5890; extra 12P) buy this and get pinout (below) A242E? TERCEL EL43? EL52? So, best upgrade AT for Sera engine is E-EL54 Cynos parts, but they are same rare as Sera's |
|

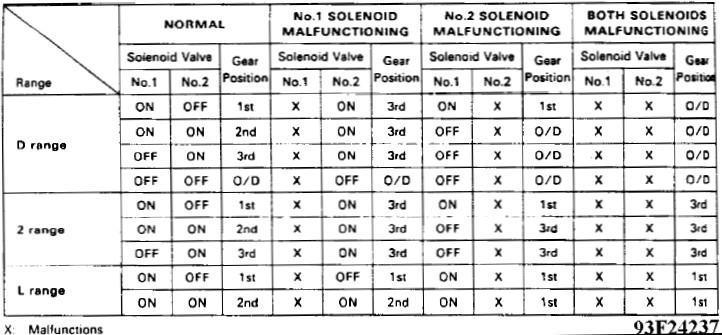

GEAR SIGNAL (pattern select switch = NORMAL; shift lever in "D" position) read from TT and E1: 1st Gear ..................................... 0V 2nd Gear ..................................... 2V 3rd Gear ..................................... 4V Overdrive .................................... 6V Overdrive with lock-up ...................... 7V Shift lever position terminals (on 9-pin connector) P ............................2 & 3, 1 & 6 R .................................. 5 & 6 N ........................... 2 & 3, 6 & 7 D ...................................6 & 8 2 ...................................6 & 9 L ...................................4 & 6 |
|
|
|

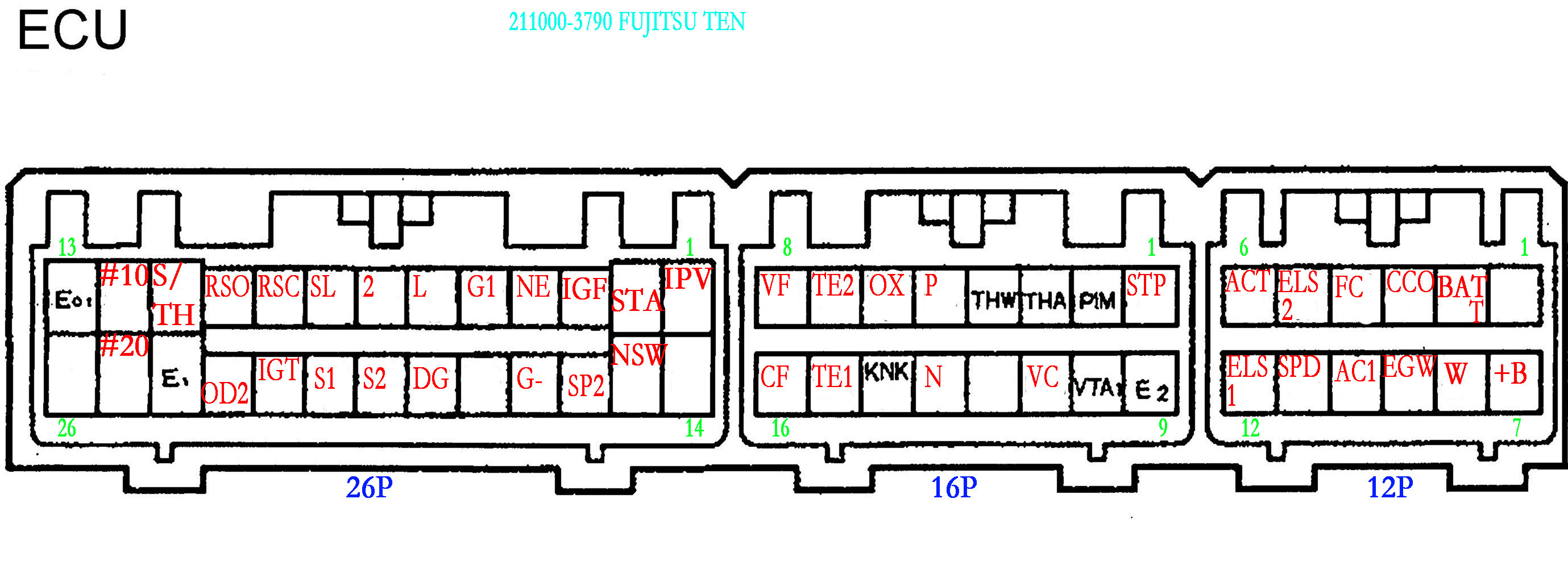

89661-16450 engine computer pinout (211000-3790 EC5A 89660-16550 211941-12700): 26P 16P 12P connectors 26P-01 IPV (vacuum switching valve) 26P-02 STA (engine cranking signal - starter switch) 26P-03 IGF (ignition feedback) 26P-04 NE (integrated ignition assembly +) 26P-05 G1 (distributor) 26P-06 L (PNP shift position switch, ECT "L" signal) 26P-07 2 (PNP shift position switch, ECT "2" signal) 26P-08 SL (ECT solenoid) 26P-09 RSC (ISC valve - close) 26P-10 RSO (idle speed control valve - open) 26P-11 S/TH (HT2) 26P-12 # 10 (to injector) 26P-13 E01 (engine-computer ground, separated) 26P-14 ~ 26P-15 NSW (neutral starter switch) 26P-16 SP2 (No.2 speed sensor ECT) 26P-17 G- (distributor crank angle) 26P-18 ~ 26P-19 DG (DLC1) 26P-20 S2 (ECT solenoid No.2) 26P-21 S1 (ECT solenoid No.1) 26P-22 IGT (ignition timing) 26P-23 OD2 (to cruise control computer) 26P-24 E1 (engine-computer ground) 26P-25 # 20 (to injector) 26P-26 ~ 16P-01 STP (stop light switch) 16P-02 PIM (pressure intake manifold, vacuum) 16P-03 THA (temperature sensor intake) 16P-04 THW (engine coolant temperature sensor) 16P-05 P (pattern select or PNP switch) 16P-06 OX (oxygen sensor No.1) 16P-07 TE2 (DLC1) - > on board has capacitor to ground, and through resistor 103 to chip FT51010-5 (IC402) 16P-08 VF (DLC1) 16P-09 E2 (sensor ground, direct to E1) 16P-10 VTA (throttle position sensor=PSW) 16P-11 VC (volume air from meter or C-throttle position sensor) 16P-12 ~ 16P-13 N (PNP switch) 16P-14 KNK (knock sensor) 16P-15 TE1 (DLC1) - > on board has capacitor to ground, and through resistor 103 to chip FT53009-4 (IC401) 16P-16 CF (cooling fan relay) 12P-01 ~ 12P-02 BATT (+12V from battery, switched by relay) 12P-03 CCO (DLC1) 12P-04 FC (relay curcuit open - fuel cut) 12P-05 ELS2 (electrical load) 12P-06 ACT (air conditioner control) 12P-07 +B (main relay) 12P-08 W (malfunction indicator lamp) 12P-09 EGW (catalytic converter overheat lamp) 12P-10 AC1 (aircon computer) 12P-11 SPD (Speed meter) 12P-12 ELS1 (electrical load) DLC1 connector located under hood near battery |
|
|
|
|
Additional sensors from EL54: MAP /89420-16100 /89420-16070 -> unique cooliant temperature /89422-20010 -> same as EXY10 air intake temp /89424-12010 -> same as EXY10 throttle position /89452-22090 -> many similar |
|
|
|
|
|
|
|
FUSE_EXY10.pdf (392,148 bytes) |
|
|
|
|
|
|
