View Issue Details
ID | Project | Category | View Status | Date Submitted | Last Update |
---|---|---|---|---|---|
0000150 | vehicle service | Toyota SERA | public | 2015-02-26 20:54 | 2020-05-15 13:31 |
Reporter | DigitalMy | ||||
Priority | normal | Severity | tweak | Reproducibility | always |
Status | assigned | Resolution | open | ||
Summary | 0000150: Remake license plate sites on bumpers to fit russian size on Toyota SERA | ||||
Description | Steps: 1. marking size 112*520 mm 2. cutting+soldering or vacuum formation 3. spackling and painting Update: get license plates of correct size instead (order) | ||||
Tags | No tags attached. | ||||
|

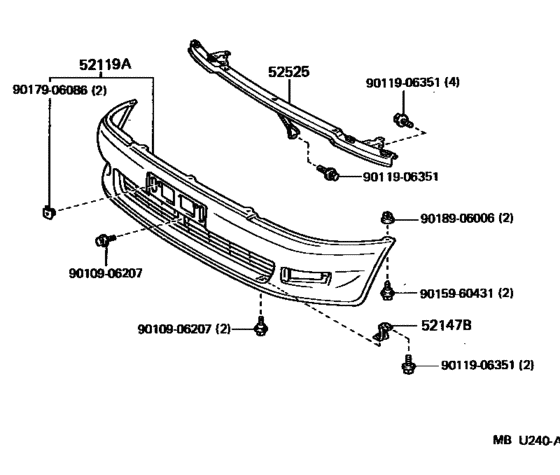

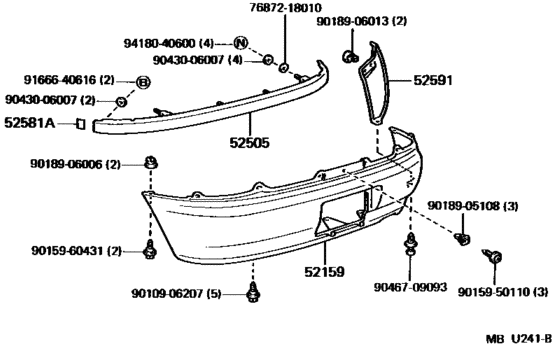

So, we had japanese bumper sites for license plate. We need make it broader and less in vertical size... |
|
spacers D=6 to 18mm, for M6 screw Rear L=65mm (license plate frame) 2pcs - 80mm screw L=5mm (license plate) 2pcs - 40mm screw Front L=20mm (license plate frame) 2pcs - 50mm screw L=10mm (license plate) 2pcs - 40mm screw |
|
|
|
|
|
GOST R 50577-2018 plate size 290mm*170mm made for modern russian "non-standard" but actual japanese vehicle registration plates have size 330x165 mm (proportion 2:1) |
|
Every DA64V has rear slot 360*170, front is not necessary to change here, simply adjust to center |
