0000175: M3sto: PC software for 3D printer : setup, adjust - DM

ID	Project	Category	View Status	Date Submitted	Last Update

0000175	3D machine tool	build	public	2016-01-12 00:32	2019-05-24 22:14

Reporter	DigitalMy
Priority	none	Severity	text	Reproducibility	N/A
Status	testing	Resolution	open

Summary	0000175: M3sto: PC software for 3D printer : setup, adjust
Description	Communicate with RepRap firmware Marlin Software: Cura Repetier slic3r
Tags	No tags attached.

DigitalMy 2016-01-12 00:36 administrator ~0000319 Last edited: 2016-01-12 12:48 View 4 revisions	Basic settings in Cura (version 15.04.2): Layer height: 0.2mm Print speed: 30mm/s Extruder temperature (PLA): 200 C Bed temp (PLA): 50 C Filament (D): 1.75mm Nozzle (D): 0.40mm

DigitalMy 2016-01-12 12:47 administrator	Cura_M3sto_M232S_PLA_0.4.ini (11,141 bytes)

DigitalMy 2016-01-30 14:57 administrator ~0000324 Last edited: 2018-11-07 00:31 View 5 revisions	Start G-code: M117 Starting... ;put message to display M106 S255 ;fan on G21 ;metric values G90 ;absolute positioning M82 ;set extruder to absolute mode G1 Z10 F500 ;move up G28 X0 Y0 ;move to zero G28 Z0 ;move to zero G1 Z10 F500 ;move up G1 X100 Y150 F2000 ;move to center XY G92 E0 ;zero the extruded length G1 F200 E3 ;extrude 3mm of feed stock G92 E0 ;zero the extruded length again M117 Printing... ;put message to display possible M3sto: G1 Z10 F1000 ;move up farther M104 S200 ;wait for extruder

DigitalMy 2016-01-30 14:58 administrator ~0000325 Last edited: 2016-01-30 15:16 View 2 revisions	End G-code: M104 S0 ; turn off temperature M140 S0 ;stop heating G91 ;relative move G1 Z10 F500 ; move up G28 X0 Y0 ; home XY axis M84 ; disable motors M106 S0 ;stop fan

DigitalMy 2016-02-24 09:43 administrator ~0000334 Last edited: 2016-02-24 09:47 View 2 revisions	Useful commands for manual control: M503 ;get settings G28 ;move to origin /G28 X0 Y0 Z0

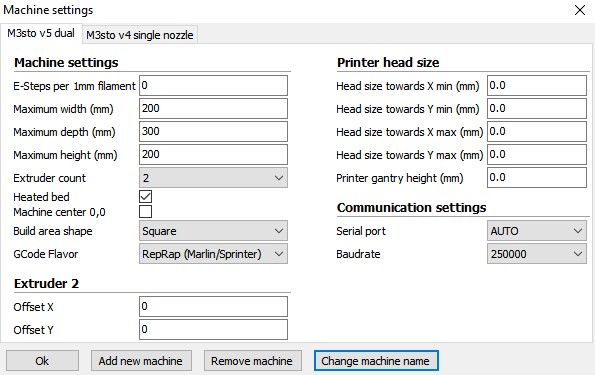

DigitalMy 2019-05-11 22:08 administrator	Cura_M3sto_dual_size_.jpg (54,383 bytes) Cura_M3sto_dual_size_.jpg (54,383 bytes)

DigitalMy 2019-05-18 12:33 administrator ~0000780 Last edited: 2019-05-18 12:39 View 2 revisions	v5: add second extruder code: Start second: M117 Starting... M106 S255 ;fan on G21 ;metric values G90 ;absolute positioning M107 ;start with the fan off G28 ;move to endstops G1 Z10 F500 ;move up G1 X100 Y150 F2000 ;move to center XY T1 ;Switch to the 2nd extruder G92 E0 ;zero the extruded length G1 F200 E3 ;extrude some feed stock G92 E0 ;zero the extruded length again G1 F200 E-3 ;retract T0 ;Switch to the first extruder G92 E0 ;zero the extruded length G1 F200 E3 ;extrude some feed stock G92 E0 ;zero the extruded length again M117 Printing... End second: M104 T0 S0 ;extruder heater off M104 T1 S0 ;extruder heater off M140 S0 ;heated bed heater off (if you have it) G91 ;relative positioning G1 Z10 F500 ;move up G28 X0 Y0 ;home XY axis M84 ;disable motors M106 S0 ;stop fan

DigitalMy 2019-05-24 22:14 administrator	Cura4_CUDA_fail-fix-crash-startup_dual-graphics.jpg (158,419 bytes) Cura4_CUDA_fail-fix-crash-startup_dual-graphics.jpg (158,419 bytes)
