0000271: White smoke from exhaust pipe, Suzuki K6A engine

ID	Project	Category	View Status	Date Submitted	Last Update

0000271	vehicle service	Suzuki EVERY	public	2018-11-06 01:08	2025-06-17 21:54

Reporter	DigitalMy
Priority	normal	Severity	major	Reproducibility	random
Status	assigned	Resolution	open

Summary	0000271: White smoke from exhaust pipe, Suzuki K6A engine
Description	On engine start it makes heavy white smoke. Under exhaust we have non-water oil leak
Tags	No tags attached.

DigitalMy 2018-11-06 08:52 administrator ~0000698 Last edited: 2018-11-11 19:22 View 4 revisions	Possible breakdowns: 1. Gasket, CYLINDER HEAD /11141-73G01 /11141-73G02 /11141-73G03 -> compatible Sanwa Gasket SA123M1 2. heat exchanger (EGR) in VALVE, ISC /18117-67H21-000 located in BODY ASSY,THROTTLE /13400-68H01-000 -> clean and test (13400-68H50 is not compatible TURBO 34C)

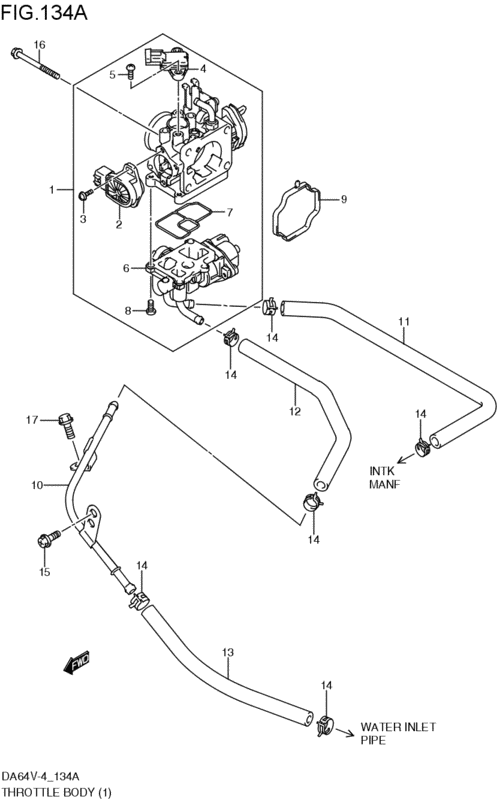

DigitalMy 2018-11-06 08:56 administrator	134A_THROTTLE.png (27,717 bytes) 134A_THROTTLE.png (27,717 bytes)

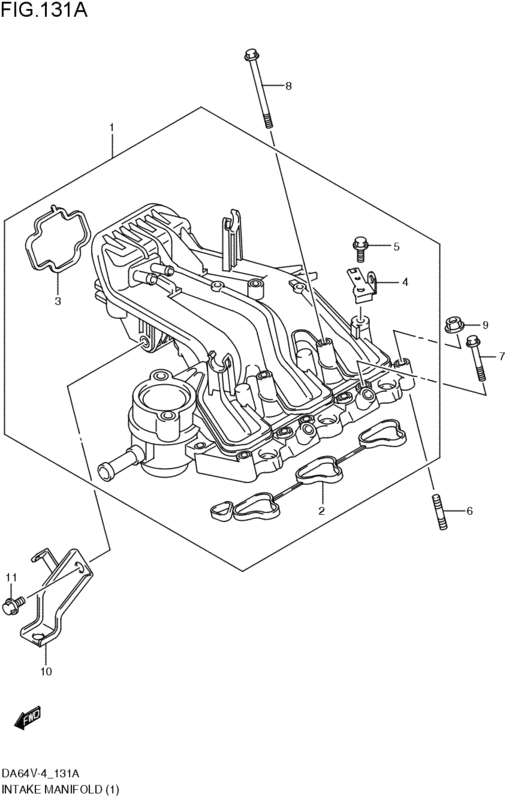

DigitalMy 2018-11-06 09:02 administrator	131A_INTAKE_MANIFOLD.png (35,066 bytes) 131A_INTAKE_MANIFOLD.png (35,066 bytes)

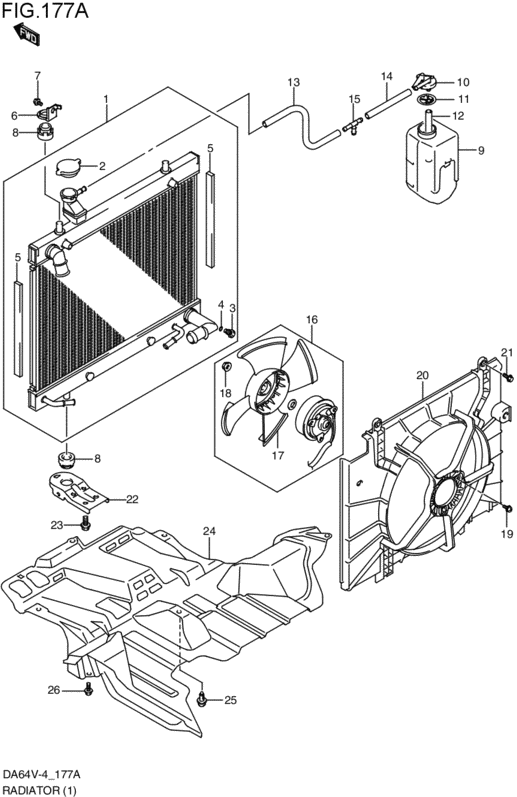

DigitalMy 2018-11-06 09:11 administrator	177A_Radiator.png (46,503 bytes) 177A_Radiator.png (46,503 bytes)

DigitalMy 2018-11-11 14:17 administrator ~0000706 Last edited: 2020-09-21 22:27 View 5 revisions	Found white dust in clean side of air filter unit. Replace engine air filter ELEMENT, AIR CLEANER /13780-68H00 -> compatible Shinko SA973 , JS Asakashi A973J , Mazda /1A09-13-Z40 +CLAMP, AIR CLEANER HOSE /13875-75F00-000 has damaged rusted screw -> replaced with custom some sound happens in ON position near throttle Missing air pipe before cleaner: PIPE,AIR CLNR SUCT NO.1 /13875-68H00-000 RESONATOR ASSY,AIR CLNR SUCT /13760-68H02-000 GROMMET,RESONATOR /13766-78A00-000 restore that resonator + pipe

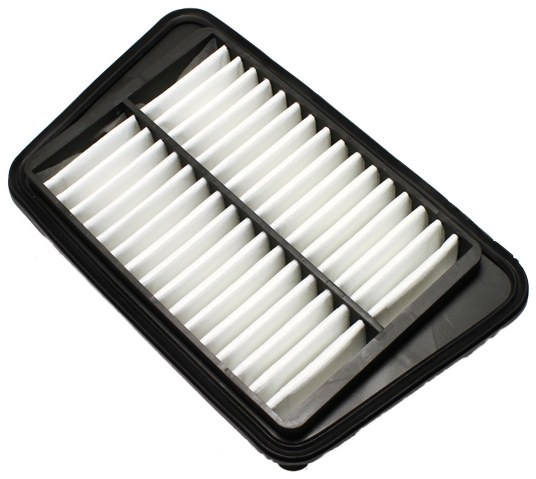

DigitalMy 2018-11-11 14:23 administrator	13780-68H00.jpg (41,989 bytes) 13780-68H00.jpg (41,989 bytes)

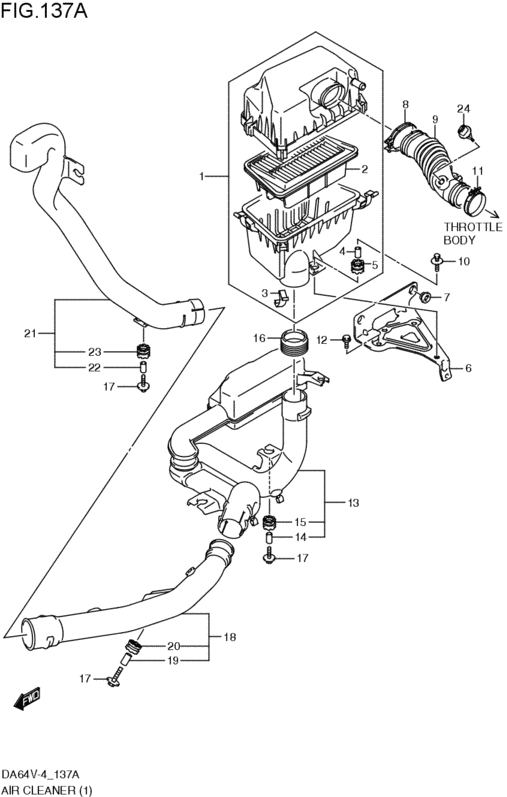

DigitalMy 2018-11-11 14:29 administrator	137A_AIR_CLEANER.png (35,456 bytes) 137A_AIR_CLEANER.png (35,456 bytes)

DigitalMy 2018-11-14 13:36 administrator ~0000709 Last edited: 2025-06-17 21:54 View 7 revisions	Replaced spark plugs 3pcs: PLUG, SPARK (NGK KR7AI) /09482-00527-000 or DENSO IXU22C /09482-00563-000 M121.25mm L=19mm W=16mm -> compatible Bosch 0 242 135 515 -879 (1.0mm gap) installed 2020-07-08 next time use Teflon paste for this thread Spark was Denso IXU22 New spark of the same size is Bosch R6 YR7DC+ : total L=75mm ; thread l=16mm M121.25mm; wrench=16mm ; inner length=23mm ; 23N*m power of tightening middle spark (one) has dark soot (dust) , same as ignition coil above -> replaced NL2 099700-095 Denso it seems overheating goes here (in the middle) or bad washer lets gas come out Coil assy,ignition DENSO /33400-76G21-000 COIL ASSY,IGNITION DENSO /33400-85K10-000 Coil assy,ignition /33400-76G30-000 02K1923 0320 DENSO 3-pin, 03L1220 0334 , 0256 11L3011 2025-06-17: replaced coils 33400-76G2 on cylinder 1 and 2, number 3 left old, which looks fine.

DigitalMy 2018-12-06 18:44 administrator ~0000723 Last edited: 2019-09-10 00:16 View 9 revisions	Replace head gasket /11141-73G01-000 /11141-73G03-000 Sanwa Gasket SA123M1 KP KA90361 Sanwa Gasket 1114173G01

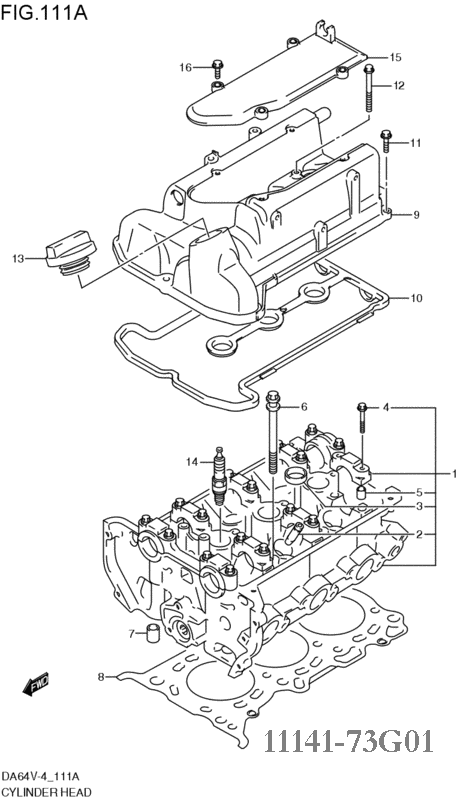

DigitalMy 2019-09-09 23:51 administrator	111A_cylinder_head.png (39,534 bytes) 111A_cylinder_head.png (39,534 bytes)

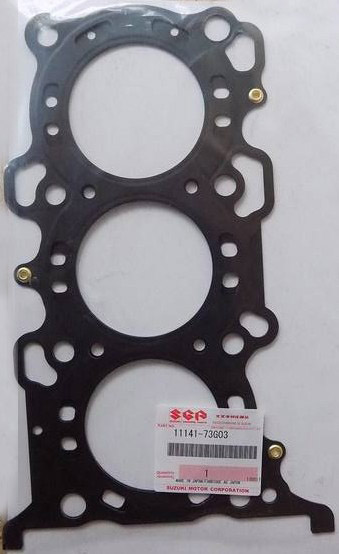

DigitalMy 2019-09-10 00:23 administrator	11141-73G03_Suzuki.jpg (55,911 bytes) 11141-73G03_Suzuki.jpg (55,911 bytes)

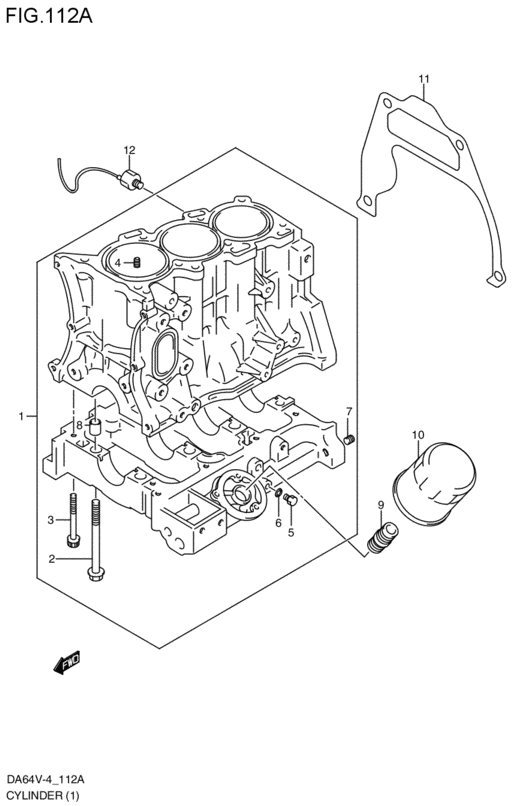

DigitalMy 2019-09-27 11:20 administrator	DA64V-4_112A_cylinder.png (34,519 bytes) DA64V-4_112A_cylinder.png (34,519 bytes)

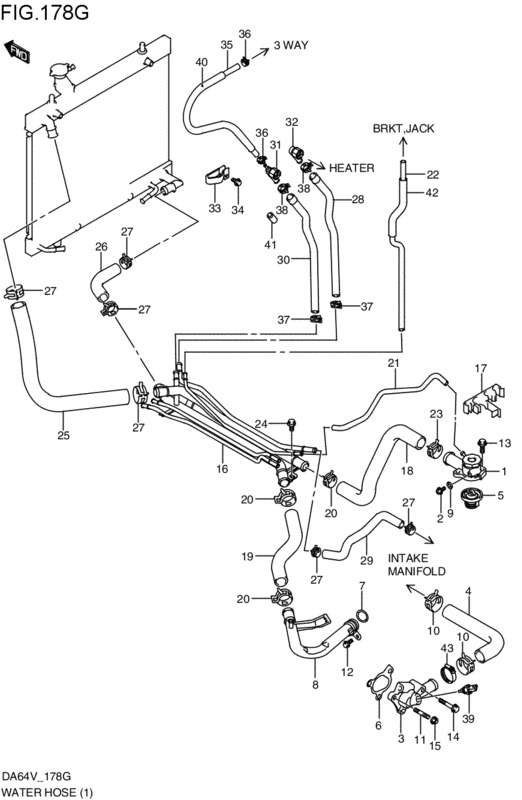

DigitalMy 2024-07-14 02:29 administrator ~0014301 Last edited: 2024-07-14 10:46 View 2 revisions	THERMOSTAT, WATER should keep 88 degrees D=44mm /17670-67H00 Found corrosion on cap -> need fix or replace it /17560-68H00 178G_water_.jpg (70,176 bytes) 178G_water_.jpg (70,176 bytes)

related to	0000283	assigned	DigitalMy	Change transmission to 4AT-4WD together with K6A-T engine
related to	0007497	assigned	DigitalMy	Oil and filter change in K6A Suzuki engine
