0000276: Repair office laptop Sony Vaio SVT1111X1R

ID	Project	Category	View Status	Date Submitted	Last Update

0000276	Hardware for PC and servers	[All Projects] General	public	2018-12-09 14:30	2023-10-20 10:52

Reporter	DigitalMy
Priority	normal	Severity	minor	Reproducibility	have not tried
Status	assigned	Resolution	open

Summary	0000276: Repair office laptop Sony Vaio SVT1111X1R
Description	1. keyboard double press -> wash (not fixed) -> turn off (use USB device) -> leave device without keyboard 2. flash memory battery ML1220 -> delay (never turn off this PC) 3. add USB 3.0 hub -> done 4. installed 2nd SSD : Win7 + Win10 , after that removed W10 and installed HDD 500 GB (backup) -> done 5. cooler fan noise (sometimes computer powers off unexpectedly) Fan in SVT11 is Delta KSB05105HB brushless 0.32A -BK92 05V DC
Tags	No tags attached.

DigitalMy 2018-12-09 14:31 administrator ~0000725 Last edited: 2020-03-21 16:02 View 2 revisions	ML1220 rechargeable must be 3V (was 1.1V) Now it is fine, above 3V measured

DigitalMy 2018-12-10 18:16 administrator ~0000726 Last edited: 2020-03-13 00:06 View 3 revisions	T11 i5 Sony SVT1111X1RS laptop model has no microphone jack... Got Sony Vaio 2012 model SVT1111Z9RS and it has web camera and microphone near display, frame model SVT111A11V, CPU 7-3517U, PC3L-10600 RAM 4GB soldered + SO-DIMM 1.35V 1333MHz , but 1.5V module works fine

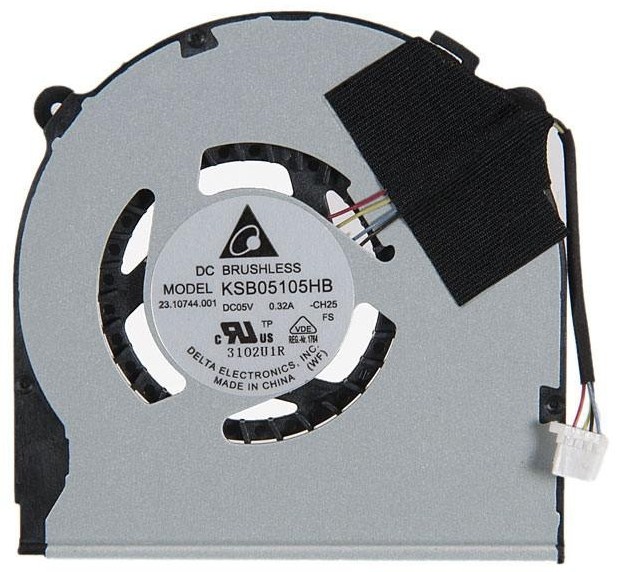

DigitalMy 2020-03-09 10:12 administrator ~0001879 Last edited: 2020-03-09 13:16 View 2 revisions	Cooler fans must be the same for SVT11, SVT13, SVT14, SVT15... Compatible: ADDA AB05505HX060B00 (0Z40UL); Delta KSB05105HB-BK92; Delta KSB05105HB-CH25 Sony part: 60.4UW01.021 A01 (possible 23.10733.011, 23.10744.001) DC 05V 0.32A 4-pin connector cleaned and applied grease, replace later KSB05105HB.jpg (93,395 bytes) KSB05105HB.jpg (93,395 bytes)
