View Issue Details
ID | Project | Category | View Status | Date Submitted | Last Update |
---|---|---|---|---|---|
0000280 | vehicle service | Toyota SERA | public | 2019-01-30 12:11 | 2019-02-22 17:25 |
Reporter | DigitalMy | ||||
Priority | normal | Severity | minor | Reproducibility | have not tried |
Status | resolved | Resolution | fixed | ||
Summary | 0000280: Repair glove tray latch and hinge in EXY10 | ||||

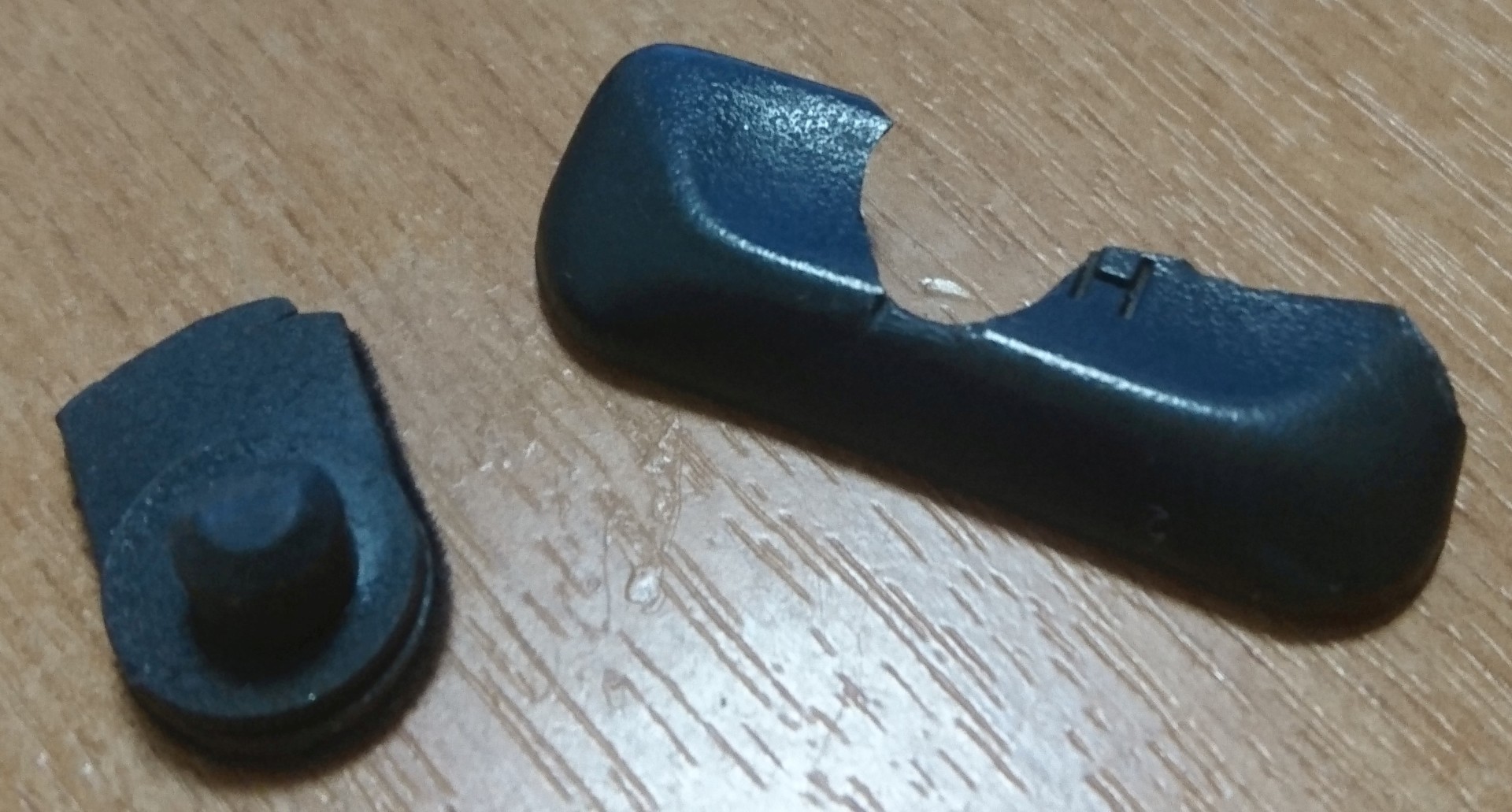

Description | latch had spring in button "PUSH" hinge was part of tray body (ABS) /55441-18010 pins on both sides, D=5.6mm L=5.6mm | ||||
Tags | No tags attached. | ||||
|
|

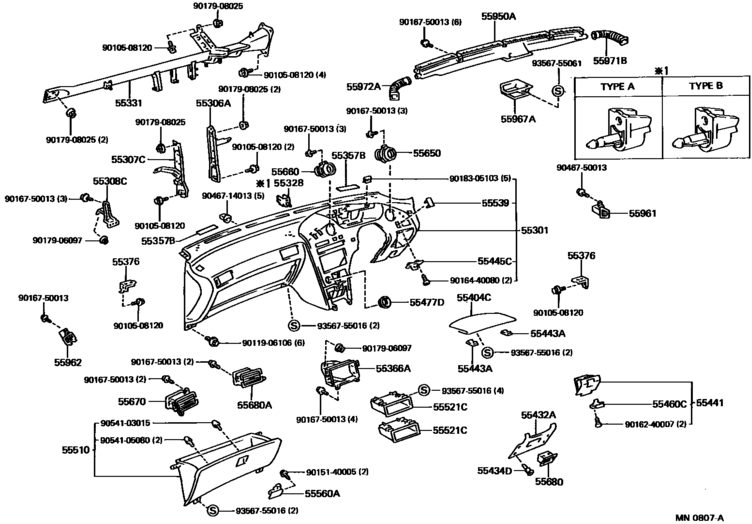

55441 BOX, INSTRUMENT PANEL -> 3D printed hinge as in model https://www.thingiverse.com/thing:3444870 used D=6.0mm spring L=22mm 55460C LOCK ASSY, INSTRUMENT PANEL BOX /55460-18010-03 -> 3D printed button as in model https://www.thingiverse.com/thing:3438053 used D=4.0mm spring L=10mm |
|
|
