Summary | 0000282: DA64V fix 4WD (front on) | ||||
Description | Currently on button "4WD" pressing we have relay sounds, like it turns off after 2 seconds in case had been switched on... Suzuki Every must not turn 4WD off immediately... Now, only rear wheels drive Additional problem: 4WD (front axle diff gear) does not work -> check on ramp, motor and switch | ||||
Tags | No tags attached. | ||||
|

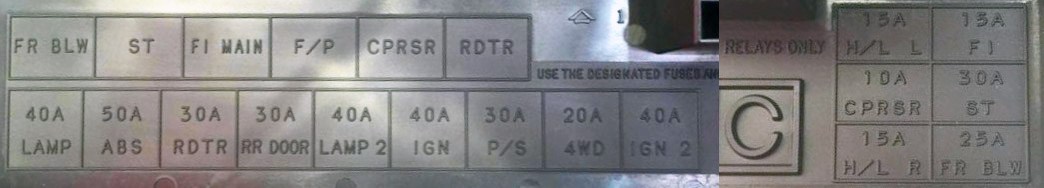

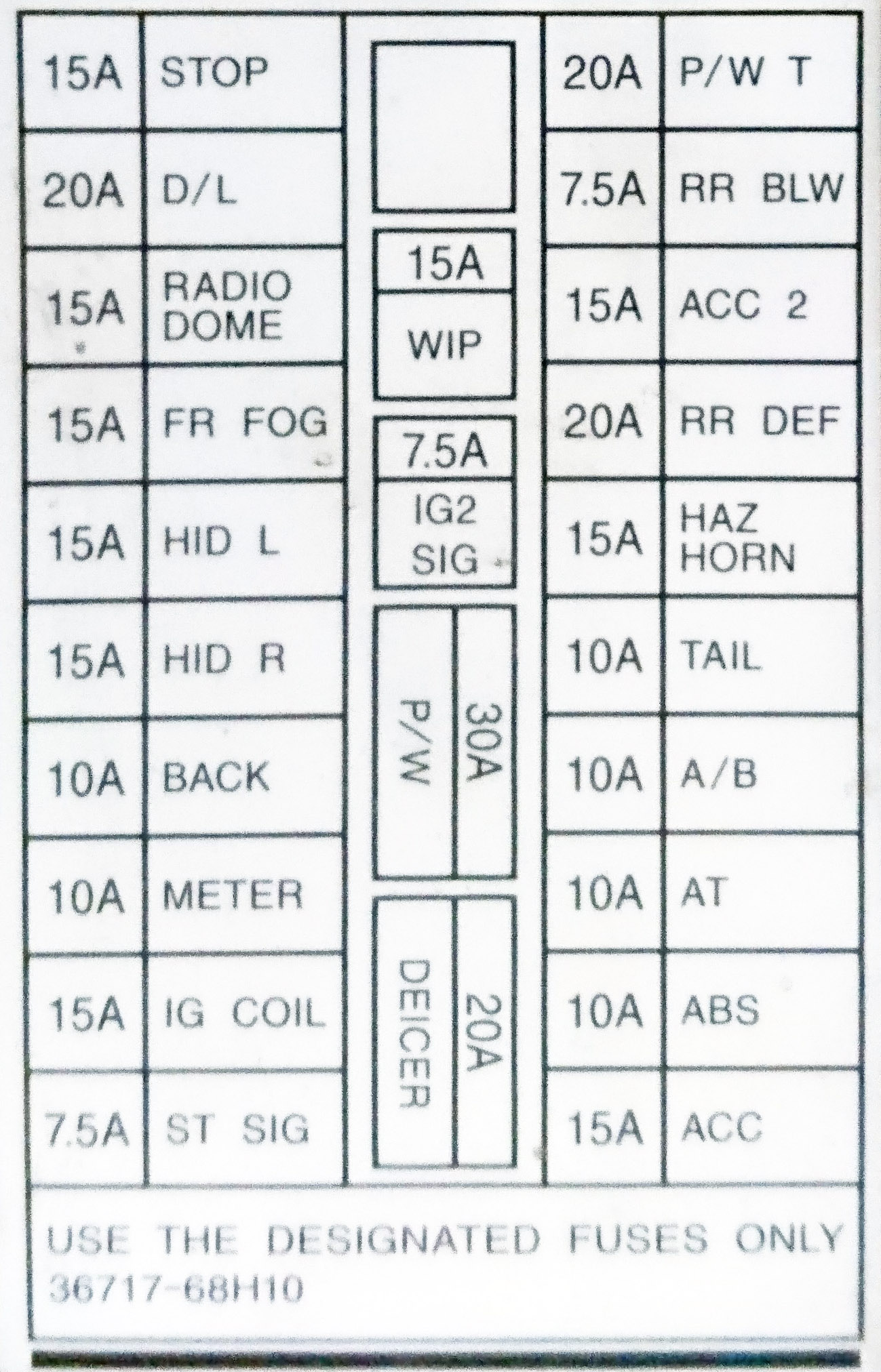

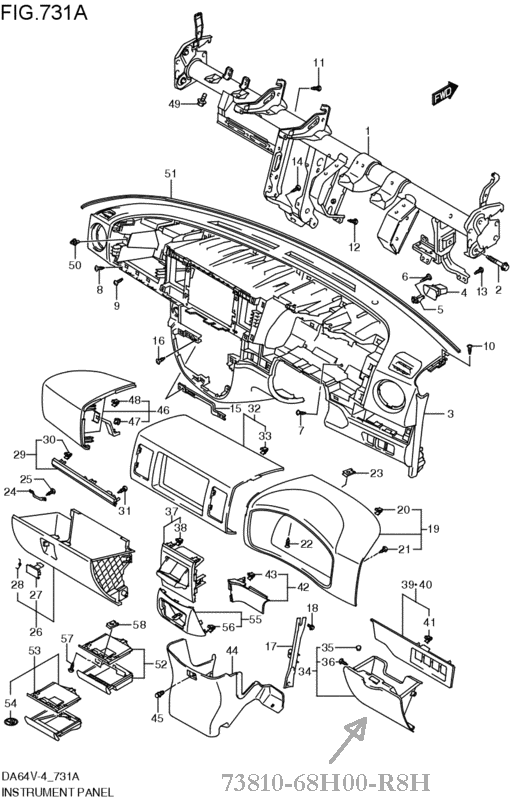

check fuses and relays in Suzuki Every DA64V inner box /36602-68HK0-000 (with Harness) located front right side of panel behind pocket I/P DRVR LWR /73810-68H00-R8H (73811-68H0) on rear side of this tray there is table /36717-68H10-000 LABEL, FUSE BOX missing (micro format): 1pc 09481-10504-000 FUSE(10A) 2pc 09481-15504-000 FUSE(15A) -> purchased set Kortex KF117 low profile fuse 1pc 09481-20403-000 FUSE(20A) -> special deicer, no need in EVCS-4 model DEICE ???? is option for mirrors (heaters) ?????? or windshield wiper area ???? ??? -> later install "deicer" and button switch /37810-62J00 |
|
|
|
|
motor fuse box under driver seat cover /36738-68H10-000 there are 5pcs Denso 12V "blue" 4-pin relay /38860-76F01-000 |
|
|
|
For parts and manuals Suzuki corporation has several systems: SIOS (internet order system) DCS (dealer communication system) https://siosdm4.suzuki.co.jp/sios/menu/login.jsp sso.hhq.suzuki.co.jp |
|

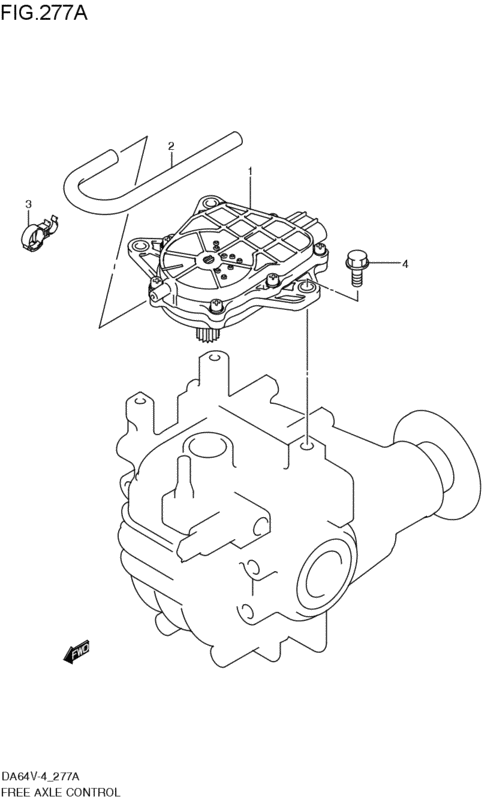

4WD issue system must turn on front drive on button switch ON in fact I have: rear (transmission) enables shaft (for 5secons approximately) , but front unit "9325C099" does not activate CV, and rear switch deactivates mid-shaft after these 5 seconds... This front unit has 2 electric connectors: 2P front side connector to: Switch assy, 4wd /37750-78A02-000 or replacement /37750-78A20-000 4P (3 pins wired only in this socket) on the top device: MOTOR ASSY,FREE AXLE /27750-79A00-000 |
|
|
