0000283: Change transmission to 4AT-4WD together with K6A-T engine - DM

ID	Project	Category	View Status	Date Submitted	Last Update

0000283	vehicle service	Suzuki EVERY	public	2019-02-20 01:41	2021-08-07 20:23

Reporter	DigitalMy
Priority	normal	Severity	minor	Reproducibility	have not tried
Status	assigned	Resolution	open

Summary	0000283: Change transmission to 4AT-4WD together with K6A-T engine
Description	Suzuki Every DA64V EVCS-4 3AT-4WD we have for upgrade
Tags	No tags attached.

DigitalMy 2019-02-20 01:46 administrator ~0000751 Last edited: 2021-08-07 20:23 View 8 revisions	4WD (front axle) does not work now Possible solution: upgrade AT to unit with 4WD 4AT 68HL-type in EVDD-2 mod turbo have same computer for 4WD-4AT (20002-68HL0-000) and 2WD-4AT, difference with newer in EVCS-4 mod (natural) computer (/33920-68HC0-000) used for 4WD-3AT (20002-68H50-000) and 2WD-3AT -> best EVDY-2 4AT+turbo (20002-68HL0-000) and EVDY-4 (20002-68HL2-000) -> newest 4AT-4WD is 20002-68HL6-000 ; newest engine computer TURBO+ is 33920-68HG0-000 T/C 4AT VAN D5 Denso 12V 112300-8932 Got this 33920-68HG0 is Denso /112300-8932 it fits both 2WD and 4WD models DA64V transmission code is 20002-68H* L = 4AT 4WD , s: 07BWA* H = 4AT 2WD , s: 05KWA* , 08MWA00510 - got this (2WD) 68HH* 1 = 3AT 2WD , s: A6D* A9D* 2 = 3AT 2WD , s: A3E* A1D* (for HBD-DA64V, 2013~) 5 = 3AT 4WD , s: A8L* A0J* A6A* last symbol is generation (from 0 to 6) DA64V computer code is 33920-68H G0 = 4AT TURBO 2008~ got this 11 = 4AT TURBO ~2008 C0 = 3AT NATURAL 51 = 3AT NATURAL = MT Additionally got relay /38870-79A00 for grade VD (turbo models) rear window

DigitalMy 2019-02-20 14:49 administrator ~0000752 Last edited: 2021-08-07 19:53 View 10 revisions	AT case is the same for 2WD (EVDD-2) and 4WD (EVDY-2) /24720-66H11-000 For 4WD adapter case /24730-68H12-000 and /24730-68H10-000 is same for EVDY-2 and EVDY-4 different shafts are for 2WD and 4WD to TURBO K6A only they installed 4AT and additional 12V 68H0 computer /38880-68H00 (both DA64V and DA64W - same controller, but 4AT only turbo, both 2WD and 4WD) made by AISIN AW co.ltd Japan with serial: TVAD**** (06H,05K,07E) - got this TVAD125145 09A possible replacement /38880-68H01 with serial: TVAE**** (10A)

DigitalMy 2019-02-24 09:02 administrator ~0000754 Last edited: 2019-02-24 21:52 View 5 revisions	T20002C TW40LS is not the same AT, but here should be TW-40E model 4AT, same as for some part of Jimny JB43W with same 2008+ year (identified by gasket 24784-66H10), but filter /26570-66H10 is used on Every only... 120 Nm Dexron III H - to be used , about 3.7 litre ? Or original Suzuki ATF 2384K fluid /99000-22970 or Aisin AT-F6** (AT-F6020) or Totachi 4562374691216

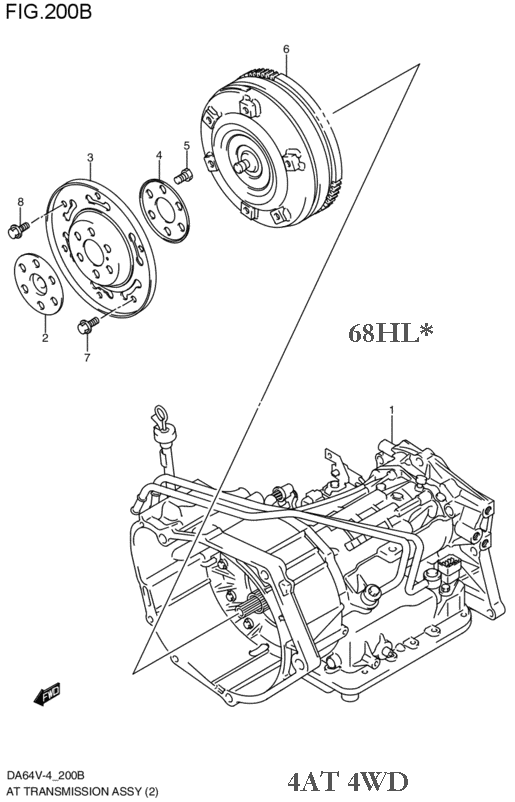

DigitalMy 2019-02-24 09:03 administrator	DA64V-4_200B-4WD-4AT.png (43,202 bytes) DA64V-4_200B-4WD-4AT.png (43,202 bytes)

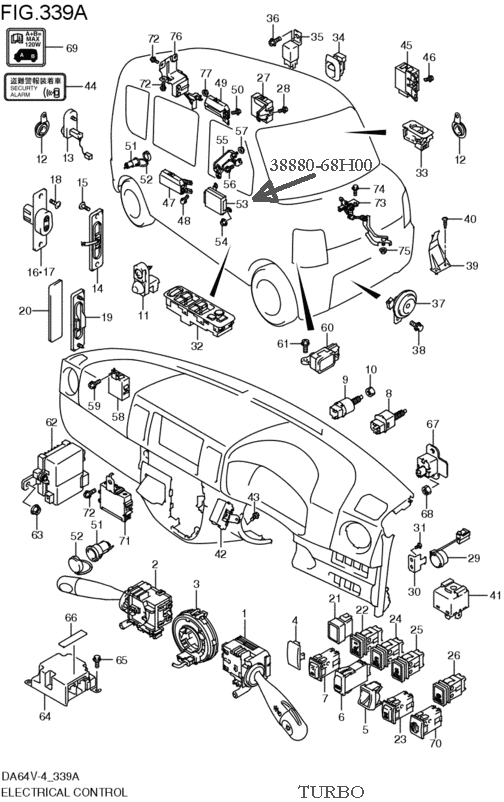

DigitalMy 2019-02-24 09:44 administrator	DA64V-4_339A-4WD-4AT_with_38880-68H00.png (58,941 bytes) DA64V-4_339A-4WD-4AT_with_38880-68H00.png (58,941 bytes)

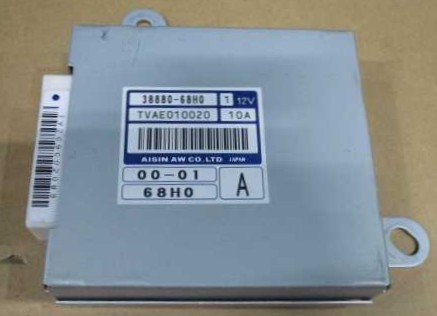

DigitalMy 2019-02-24 11:07 administrator	38880-68H01__000.jpg (22,812 bytes) 38880-68H01__000.jpg (22,812 bytes)

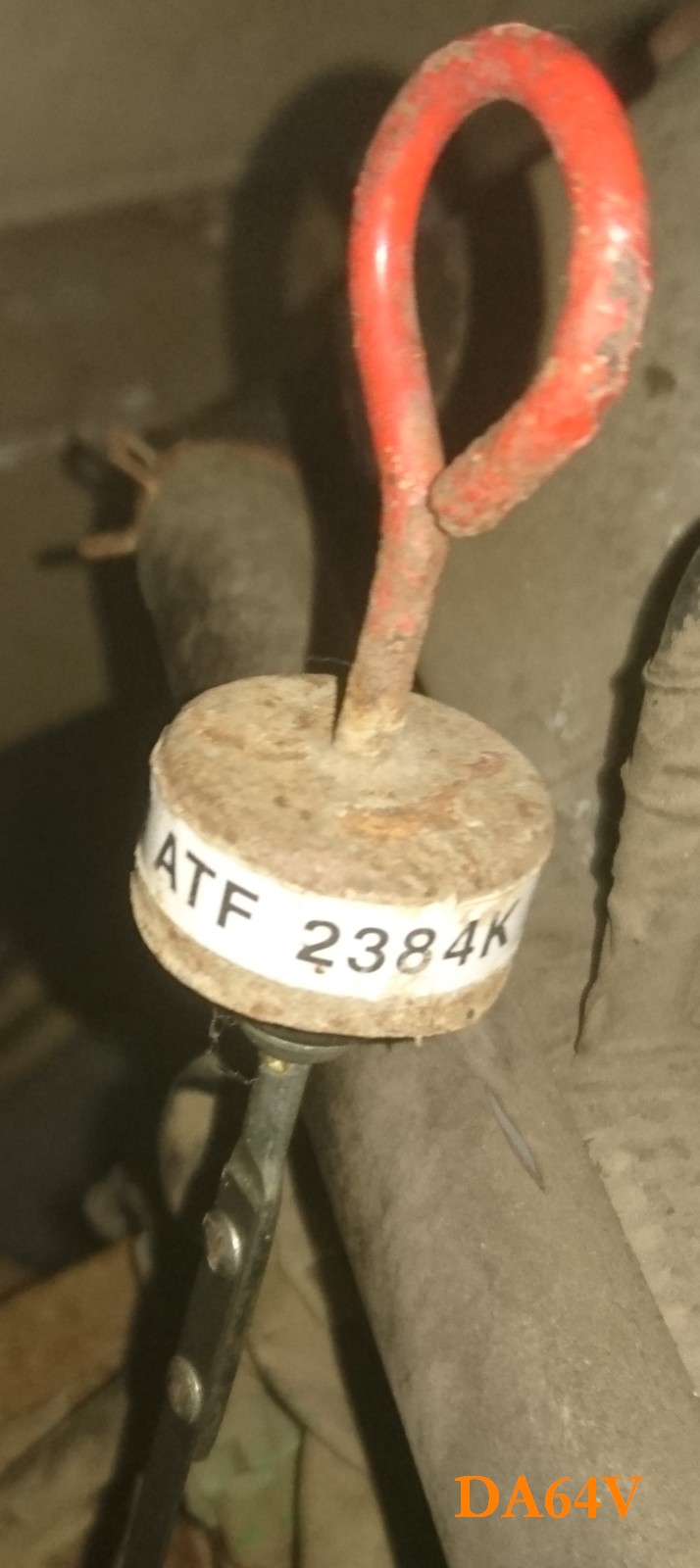

DigitalMy 2019-03-02 00:11 administrator	ATF_2384K.JPG (152,799 bytes) ATF_2384K.JPG (152,799 bytes)

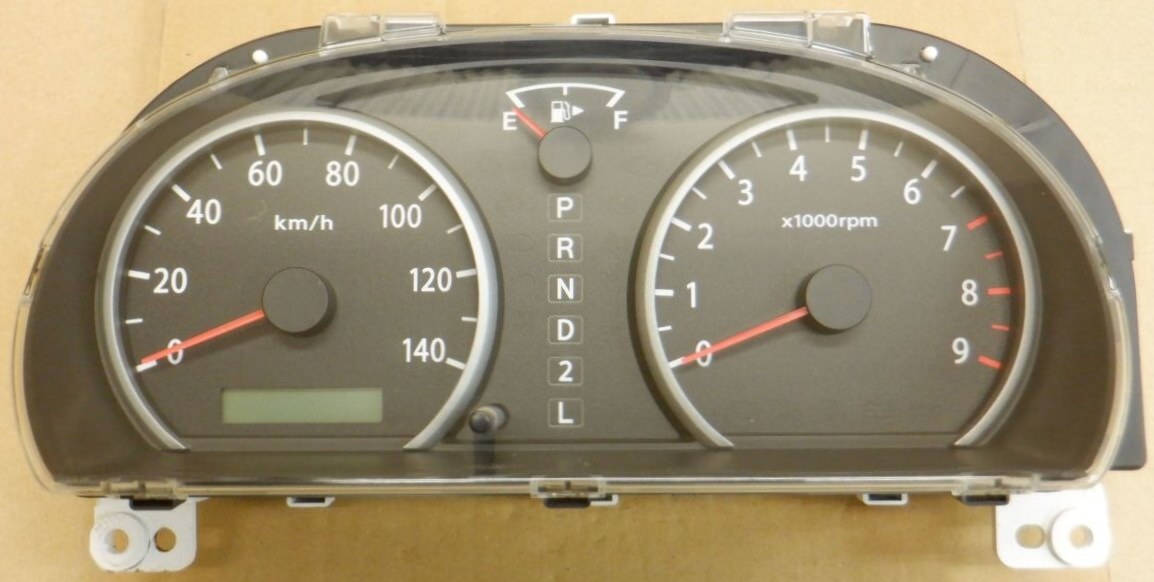

DigitalMy 2021-08-07 19:18 administrator ~0007066	Got K6AT engine turbo with cooler Got 4AT for rear 2WD 68HH* transmission + shaft for swap Instrument panel 140km/h AT 68H3 with rpm SZ0997-002 /34100-68H30 fits turbo 4AT models 34100-68H30_.jpg (97,830 bytes) 34100-68H30_.jpg (97,830 bytes)
