View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0000056 | vehicle service | Suzuki GSR400 | public | 2013-07-16 19:54 | 2021-06-28 11:27 |
| Reporter | DigitalMy | ||||
| Priority | normal | Severity | trivial | Reproducibility | N/A |
| Status | resolved | Resolution | fixed | ||
| Summary | 0000056: GSR400 chain and sprocket(s) replacement | ||||
| Description | loud noise made by chain | ||||
| Tags | No tags attached. | ||||
|
|
suzuki_gsr600_ru.pdf (4,777,841 bytes) |
|
|
GSR600-Service-Manual-Eng-2006.pdf (53,489,990 bytes) |
|
|

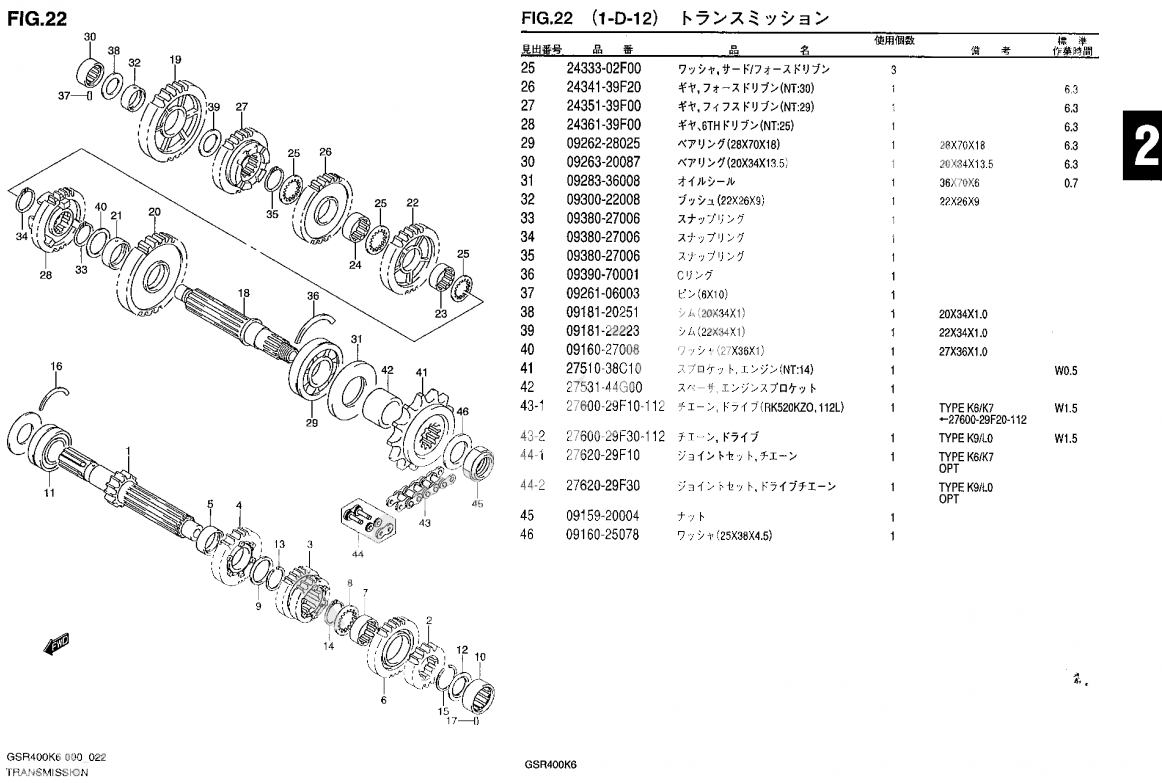

Need to replace: 1) Sprocket, engine (nt:16) Suzuki GSR600 /27510-20A10-000 GSR400 had nt:14 /27510-38C10 2) Sprocket, rear (nt:48) Suzuki GSR600 /64511-44G00-000 GSR400 had 47T-520 /64510-12H00 or /64511-12H10 3) Chain assy (rk525sm0z7,114L) Suzuki GSR600 /27600-06G30-114 GSR400 had RK520KZO 112L /27600-29F10-112 or /27600-29F20-112 or /27600-29F30-112 and possibly 4) Joint set, chain Suzuki /27620-06G00-000 |
|
|

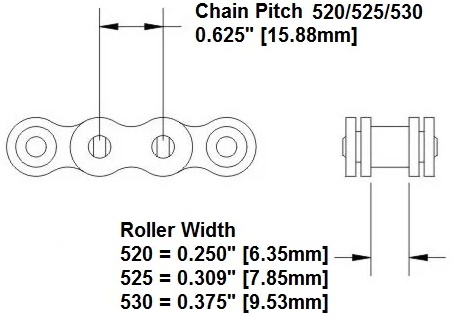

As come from service manual, chain must be 114 links - 525 type - and 20-pitch max length = 336.5 mm |
|
|
Used chain RK GXW525-114 instead of 27600-06G30-114. Real length = 114 p. |
|
|
Original gear ratio GSR600 3.00 GSR400 3.36 1) Pinion (inner 13T) aftermarket offers 17T and 15T modifications to make it faster, use JTF520RB 17T (JTF520.17RB) - purchased |
|
|
