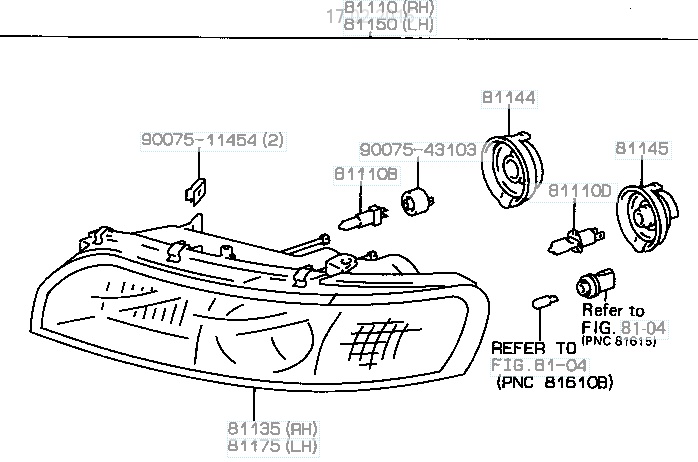

front HEADLAMPs: NO.1 = high beam NO.2 = low beam (dimmer, round) NO.3 = PARKING & CLEARANCE LAMP /90981-13027 = BULB (FOR HEADLAMP, NO.2 = low beam) = Koito JAH3C + 90075-99017 (COVER, HEADLAMP, NO.1 = high beam) + 90075-43103 (HEADLAMP NO.1, ADAPTER) Replace 2 piece -> done Bulbs: Headlamp No.1 - H1 12V 55W (85W?) P14,5s (far, 1 pin) /90981-13017 Headlamp No.2 - H3C PK22D/5 12V 55W (near, 2 pins) /90981-13027 /90981-13041 Headlamp No.3 - W5W 12v 5W (PARKING and CLEARANCE LAMP) /99132-12050 |
|
|
Ordered 2 more bulbs for Front clearance lamp /99132-12050 (ordered LYNXauto L12805 and Bosch 1 987 302 206 and Hans Pries 104497755) 12V 5W |
|
|
|
|

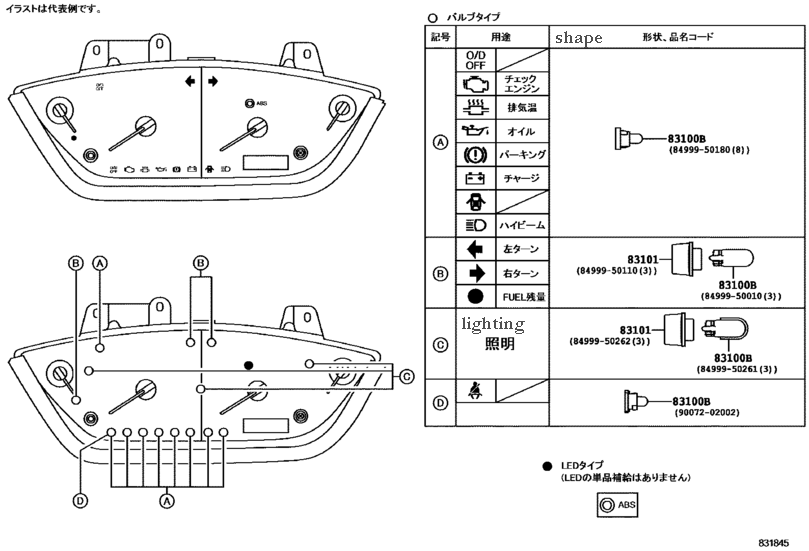

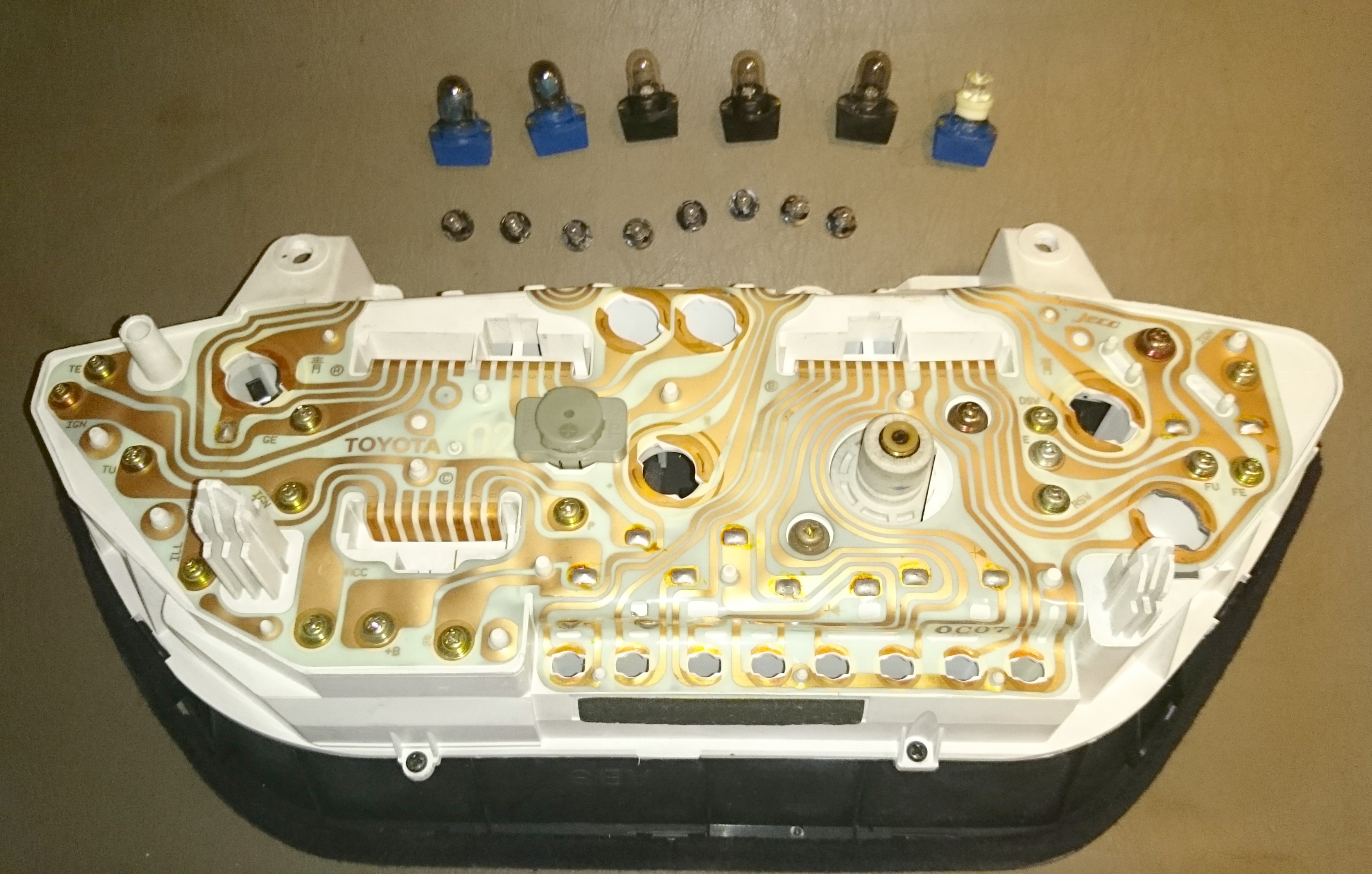

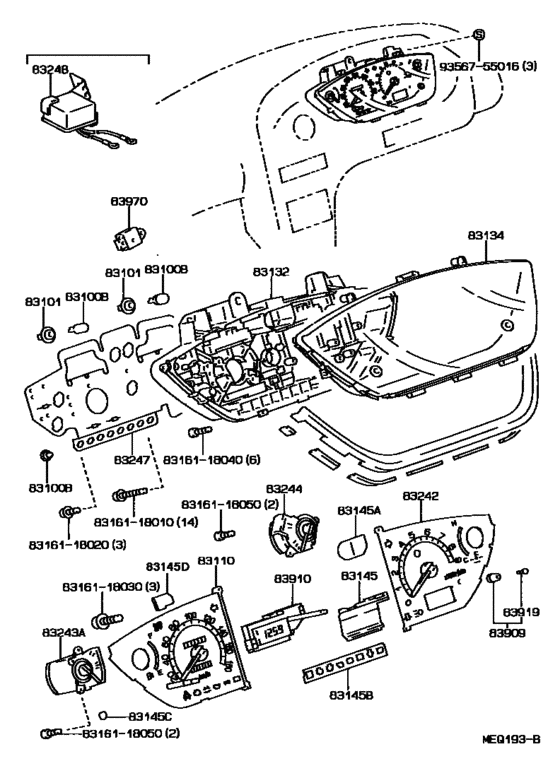

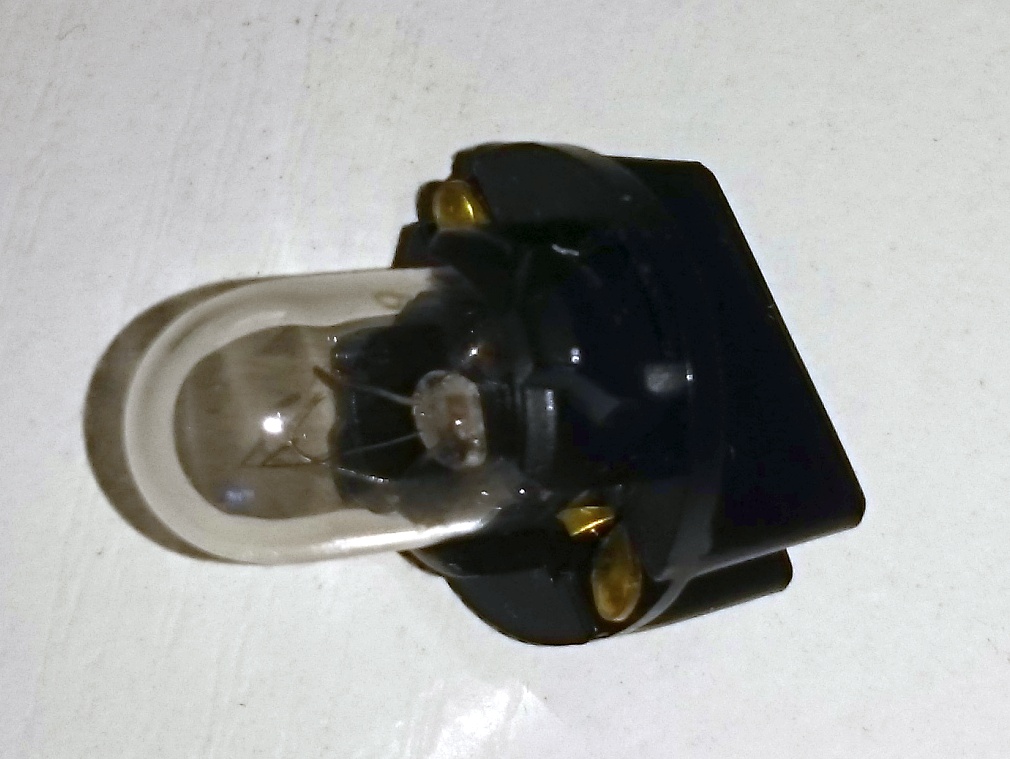

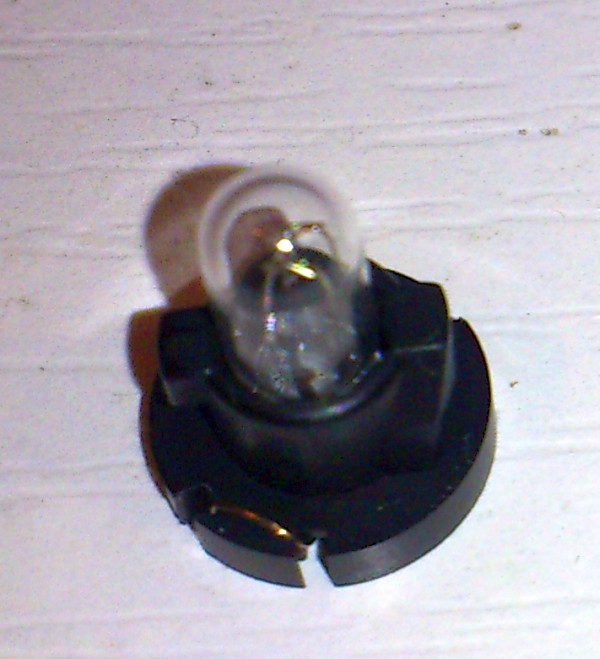

For inner meter (instrument indicator) panel lightening: BULB, COMBINATION METER, NO.1, 12V?3.4W (3 pcs) /84999-50261 -> (3 colored for backlight) with separate socket (blue or green) /84999-50262 D.bulb=10mm, W.bulb=9.4mm *3.8mm, H.bulb=24.6mm, H.total=26.5mm with socket, twist socket D.flange=18.4mm D.lock=15.8mm D.cylinder=12.6mm, "T10" type, aperture D.min=13.0mm , D.max=16.6mm BULB, COMBINATION METER, NO.2, 12V?1.2W (8 pcs) /84999-50180 -> got one D.lamp=4.2mm; H.total=13.0mm with socket; D.total=9.6mm; D.hole=6.0mm and 8.0mm, twist socket D.lock=7.8mm; JSD V-2 (for PH2 screwdriver) "T4.2" lamp type -> 8 bulbs of this size Bulb, indicator lamp, 12V?3.4W (3 pcs) /84999-50010 -> (3 transparent, for turn signals) with separate socket /84999-50110 was Toshiba M9 158 Z (VDO 600-815 ?) M-X, "T10" type bulb in Toshiba V-2 socket, same as No.1 above. from 6 bulbs of this size Bulb, Combination Meter, belt indicator, 14V?1.4W,with socket (1 pcs) /90072-02002 |
|
|
Ordered for test in COMBINATION METER: Philips 12597 CP , D.=9.2 Philips 12598 CP , D.=8.4 12V 1.2W -> both not fit (D.bulb=5mm too big) Bosch 1987302208 W1.2W 12V D=4.8mm H=19.2mm |
|
|
|
|
|
|
LED replacement project, "3528" 68SMD 310LM 6500K (H4) Color temperature: "3528" 120SMD (H4) 6000K 3000LM 30W "2323" 10SMD 10W 360LM 12V 7.5W 600LM 6500K H3C - 80LM/W (H1) 5630 12LED SMD 600LM 13 5050SMD LED 180LM H1 600LM 6000K CREE 10SMD Target color temperature is 5000K Target brightness is H1 1600LM H3C 1000LM H4 1700+1000LM Tested =2.1W 10"CREE"SMD is low power and big size |
|
|
|
|
LED SMD properties 2835 25LM 0.2W - 125LM/W 3014 10LM 0.1W - 100LM/W 3020 8LM 0.06W - 130LM/W 3258 16LM 0.2W - 80LM/W 3528 6LM 0.06W - 100LM/W 4014 5050 16LM 0.2W - 80LM/W 5630 55LM 0.5W - 110LM/W 5730 50LM 0.5W - 100LM/W CREE XB-D 300LM 3W - 100LM/W Targeting to maximum lumens per watt (more than 200) |
|
|

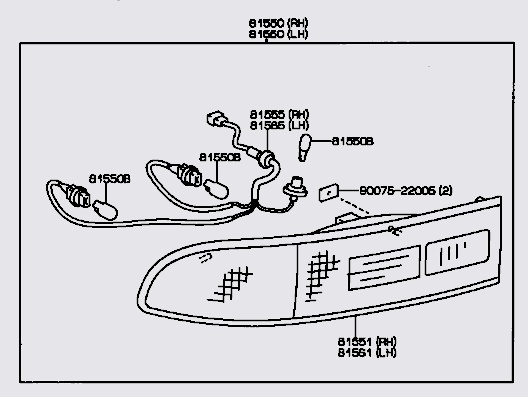

Rear lamp combinaion No.1 turn signal /90981-11039 12V?16W w16w t15 W2,1x9.5d No.2 rear move indicator /99132-11210 12V?21W P21W BA15s / round, 1 pin No.3 stop signal /99132-21210 12V?21/5W p21/5w s25 bay15d / round D15mm, 2 pins and 2 more: BULB (FOR LICENSE PLATE LAMP) /99132-12050 12V?5W / W5W W2,1x9.5d and inside: bulb stop signal central 12v 21w P21W BA15s |
|
|
|
|
|
|

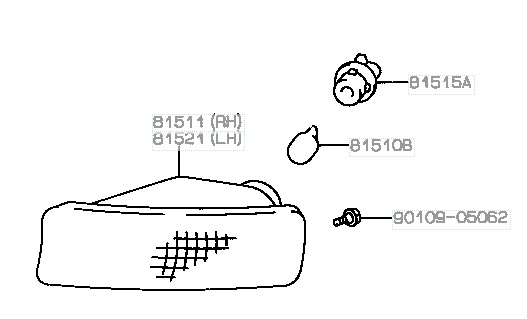

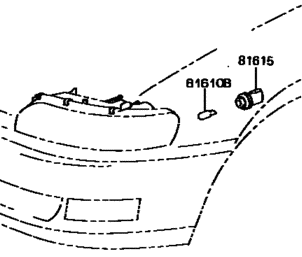

Turn signals: bumper BULB (FOR FRONT TURN SIGNAL LAMP) /99132-11210 12V?21W / P21W BA15s BULB (FOR SIDE TURN SIGNAL LAMP) /99132-12050 12V?5W / W5W W2,1x9.5d |
|
|
|
|
|
|
door light (open) indicator, festoon D=10mm L=30mm C5W SV8.5 12v 5w / Ordered LED (50 RUR - 2 pcs) |
|
|
interior c10w /99132-12100 T10X31 /replaced with LED L=31mm 12V 10W 1pcs SV8.5 |
|
|
SHIFT LEVER has BULB, POSITION INDICATOR LAMP type W1,2W Bosch 1987302208 12V 1.2W /90981-11018 replace /99132-YZZBJ -> not working |
|
|
