0007462: Replace damaged thermostat and cap

ID	Project	Category	View Status	Date Submitted	Last Update

0007462	vehicle service	Suzuki EVERY	public	2024-08-30 18:03	2024-08-30 18:29

Reporter	DigitalMy
Priority	normal	Severity	minor	Reproducibility	have not tried
Status	assigned	Resolution	open

Summary	0007462: Replace damaged thermostat and cap
Description	DA64V thermostat located between seats on engine top should be installed spring down, writing up, pin looking forward car front
Tags	No tags attached.

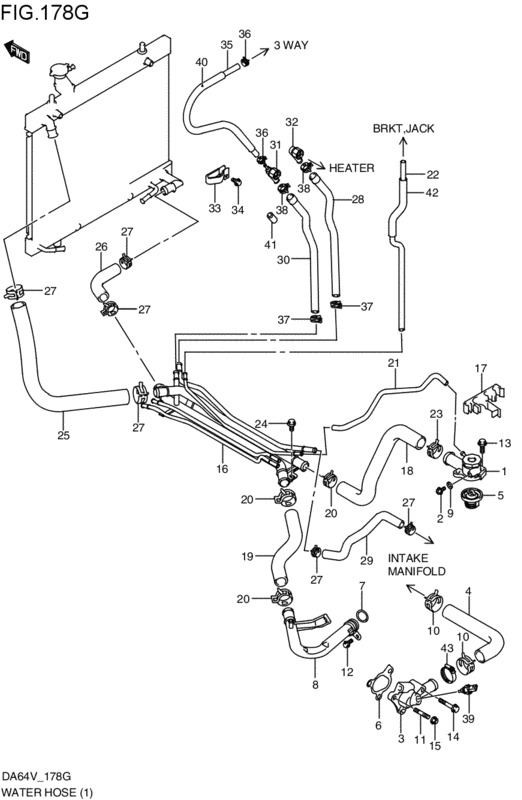

DigitalMy 2024-08-30 18:21 administrator ~0014356	bypass pin should be located in output hose direction do not install upside down (it is possible in fact) Thermostat, water (88 C) /17670-67H00-000 /17670-67H01 Water hose connection 178G_water_DA64V.jpg (70,176 bytes) 178G_water_DA64V.jpg (70,176 bytes)

DigitalMy 2024-08-30 18:29 administrator ~0014357	Replaced damaged Cap, wtr pressure (1.1) /17561-68H00-000 CAP, Water PRESSURE 1.1 /17561-68H10 1A02-13-156 (Mazda)
