0007509: Power replace for D-Link DCH-M225

ID	Project	Category	View Status	Date Submitted	Last Update

0007509	Networks	Hardware	public	2025-07-30 22:20	2025-07-31 00:07

Reporter	DigitalMy
Priority	normal	Severity	minor	Reproducibility	have not tried
Status	assigned	Resolution	open

Summary	0007509: Power replace for D-Link DCH-M225
Description	Use single chip module wireless device with OpenWrt
Tags	No tags attached.

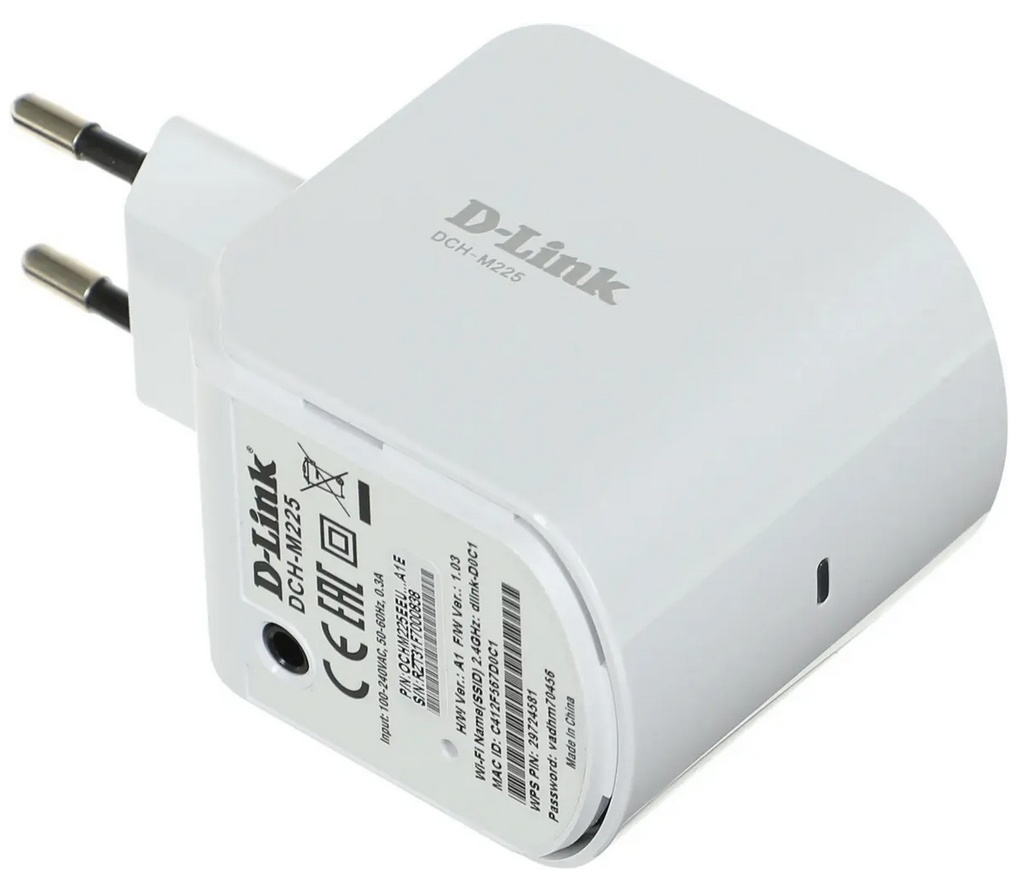

DigitalMy 2025-07-30 22:44 administrator ~0014476	Install openwrt-24.10.0-ramips-mt7620-dlink_dch-m225-squashfs-factory.bin Power on device with reset button: activate recovery mode open wifi Connect to Wi-Fi and open device web page http://192.168.0.50 and upload .bin After boot press WPS button for Wi-Fi enable in OpenWrt by function Chip MediaTek MT7620A DCH-M225.jpg (100,827 bytes) DCH-M225.jpg (100,827 bytes)

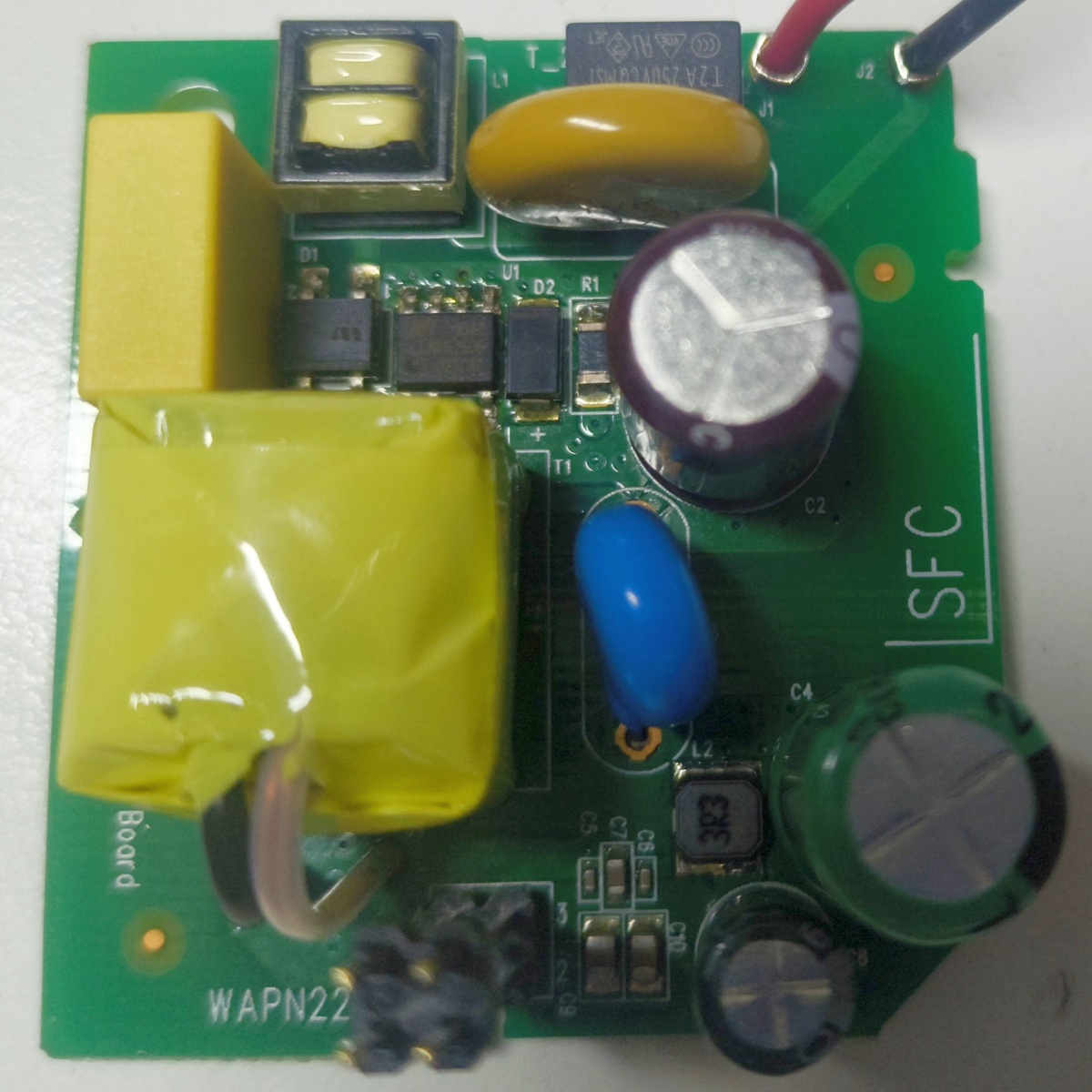

DigitalMy 2025-07-31 00:07 administrator ~0014477	Device has WAP-N22 power board 5W 4-pin connector 3.3V: pins 1-2 = GND pins 3-4 = +DC3.3V WAPN22P_A1.jpg (382,068 bytes)
