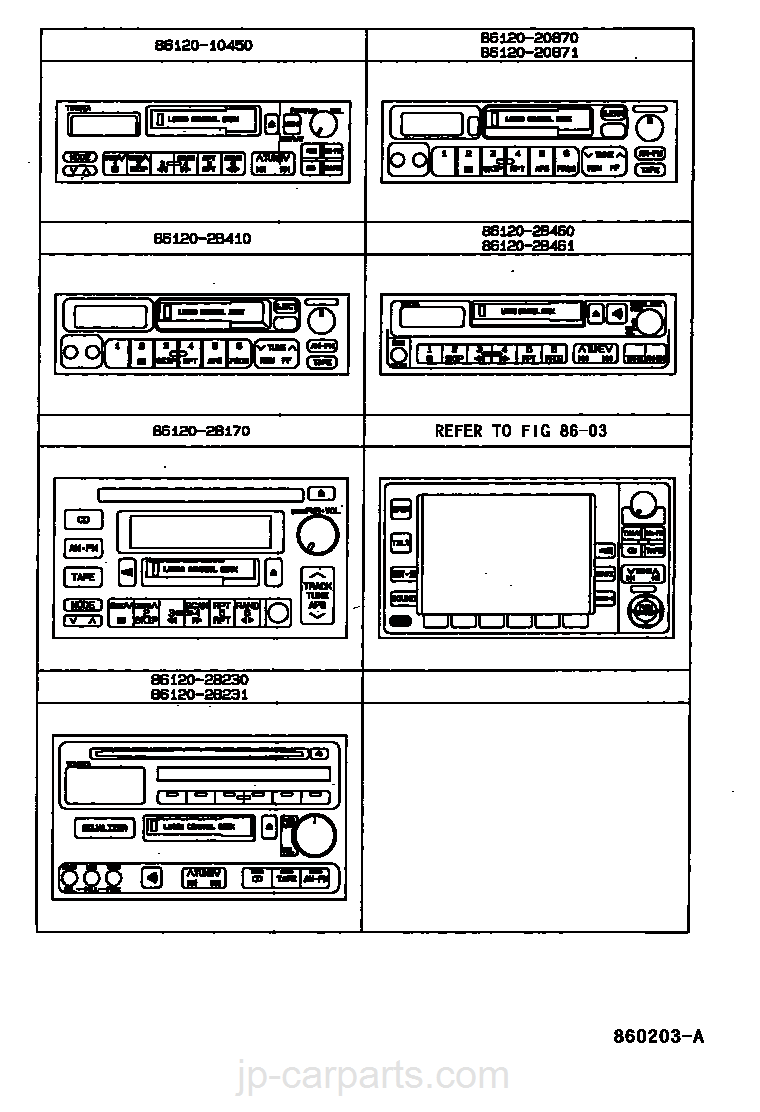

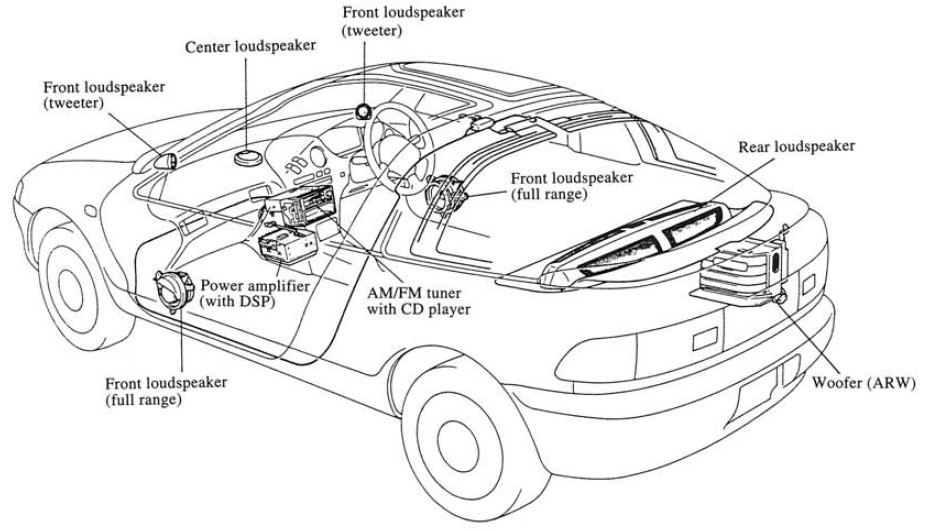

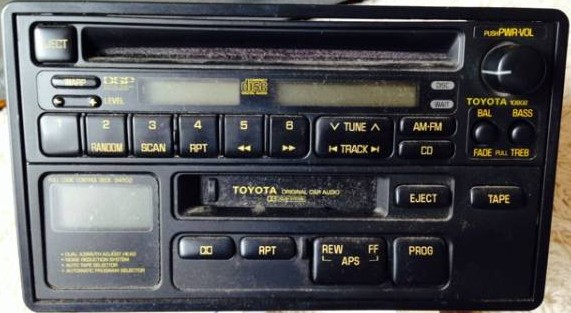

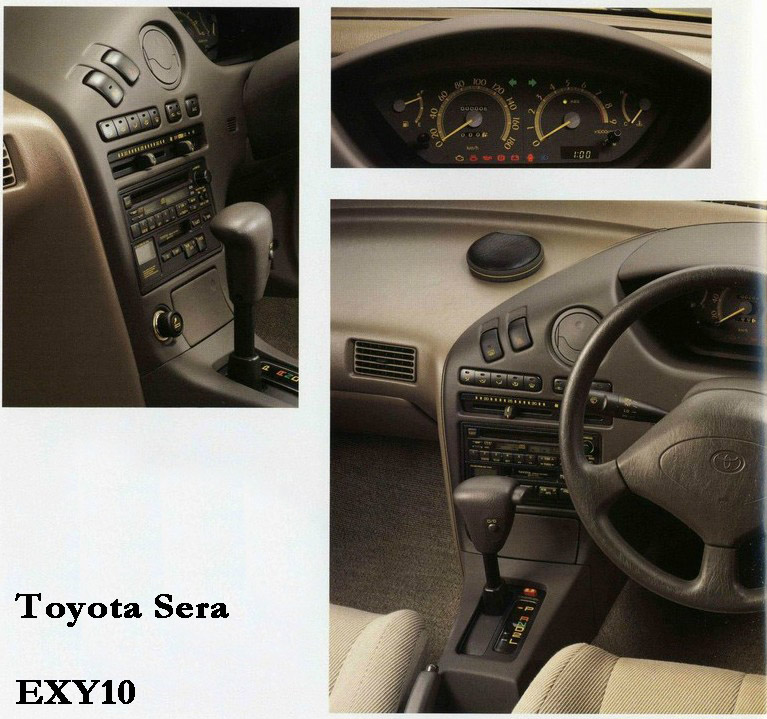

+ Restore SLSS (audio system) -> cancelled task in 2021 tape must be Full logic control deck 34102 made by Fujitsu ten /08690-00486 (SP-66I0TMI) and CD unit /86100-18010 ? total is 2DIN amplifier is Fujitsu ten /86280-18010 CD is between BRACKETs, strengthen with screw *4 /90159-50173 |
|
|
Found and purchased CD unit TOYOTA C4200 /08601-00190 (Pioneer CDX-9101zt) made in 1996 with 8 pin connector -> wasted but it seems to be not SERA one, or at least not SLSS, because SLSS made by Fujitsu ten limited Purchased one more familiar amplifier from ESTIMA /86280-28060 -> wasted |
|
|
Sound system (temp): Installing Sony WX-7700MDX -> sold need (HiR) remote control RM-X5S (original RM-X110) used RM-X6S installed Sony CDX-L650X -> removed finally |
|
|
|
|
|
|
Subwoofer in boot connector is 6-pin Subwoofer is /86150-18030 in stock 2 pieces -> wasted |
|
|

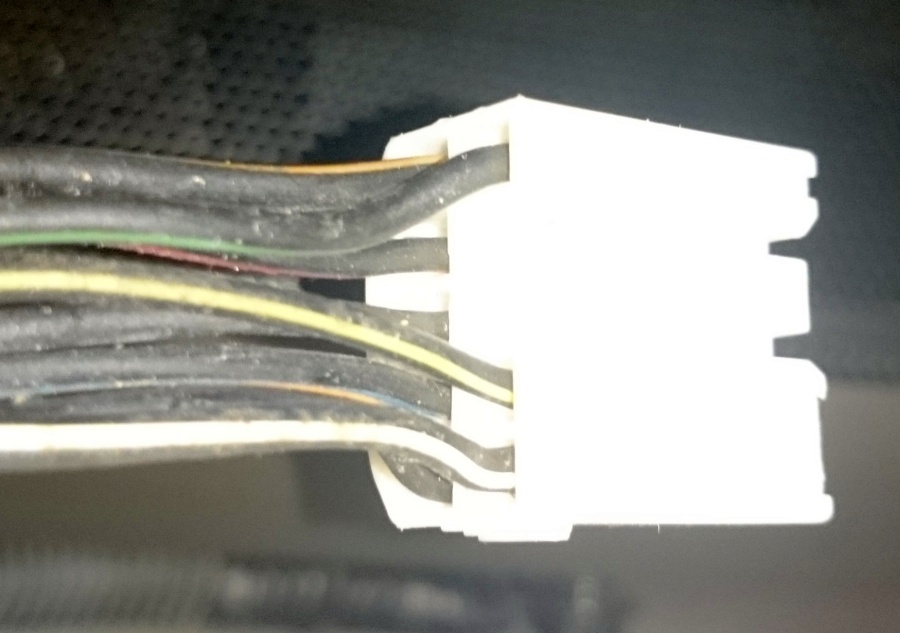

Rear speakers (moveable) SLSS has got 8-pin connector (2 row = 3 + 5) all 8 wires enabled when look to the male connector on the left board from the boot it will be: 3 _ _ 2 1 8 7 6 5 4 the cover wire layout is: 1. black-white = speaker output left (+) 2. black-yellow = UP control (+) 3. black+green = Right speaker (+) output 4. black-pink = Speaker Output Left (-) 5. black-blue = DOWN control (+) 6. black = GND (-) 7. black-red = WAP (+) 8. black-pink = Speaker Output right (-) |
|
|
|
|
|
|
- Anonymous
