Rear boot connector is 6-pin has only 4-pin wired : C01: red = Right (+) C02: black = Left (+) C03: white = Right (-) C04: empty C05: empty C06: yellow = Left (-)
|
|

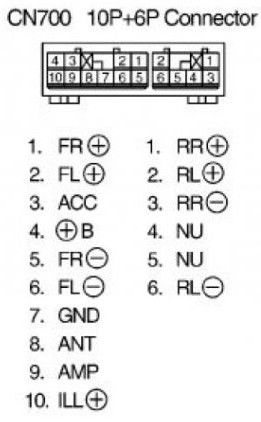

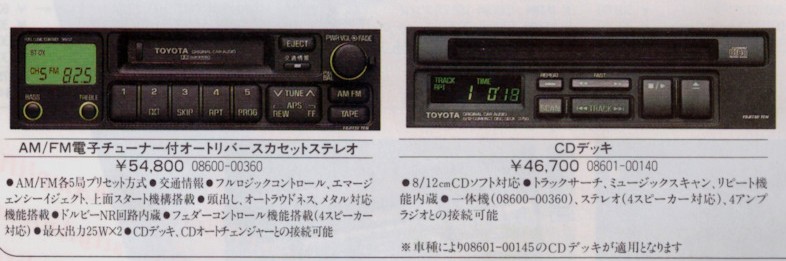

Head unit has classic 10P+6P connectors 6P is same as rear boot 10P has wires (color): P01 (light green) = front right speaker (+) P02 (pink) = front left speaker (+) P03 (gray) = ACC power input (+12V switched) P04 (blue-yellow) = BAT power input (+12V constant) fused by "DOME" 15A (underhood last fuse) P05 (blue) = front right speaker (-) P06 (purple) = front left speaker (-) P07 (brown) = GND (-) P08 (empty) = antenna power out P09 (empty) = amplifier power out P10 (green) = illumination input +12V |
|
|
