Changed PLUG, SPARK -> also 4pcs. Toyota /90919-01184 -> currently installed (2015), the same as Denso K20PR-U11. Bosch platinum plus FR8DPX was before. Spark plugs in 5E-FHE have thread D=14mm (M14) L=19mm, spanner=16mm. |
|
|

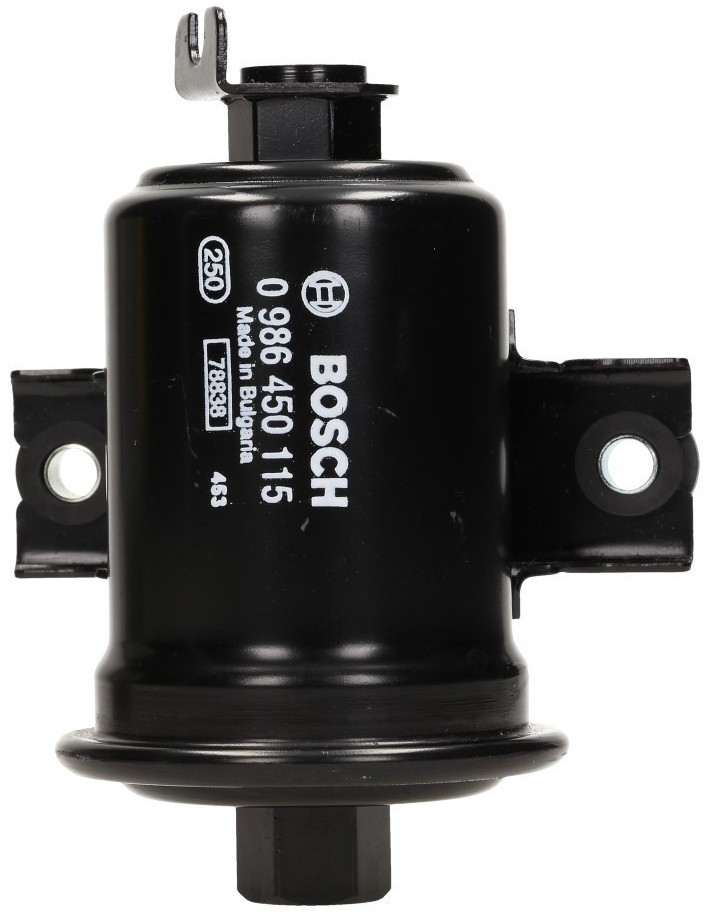

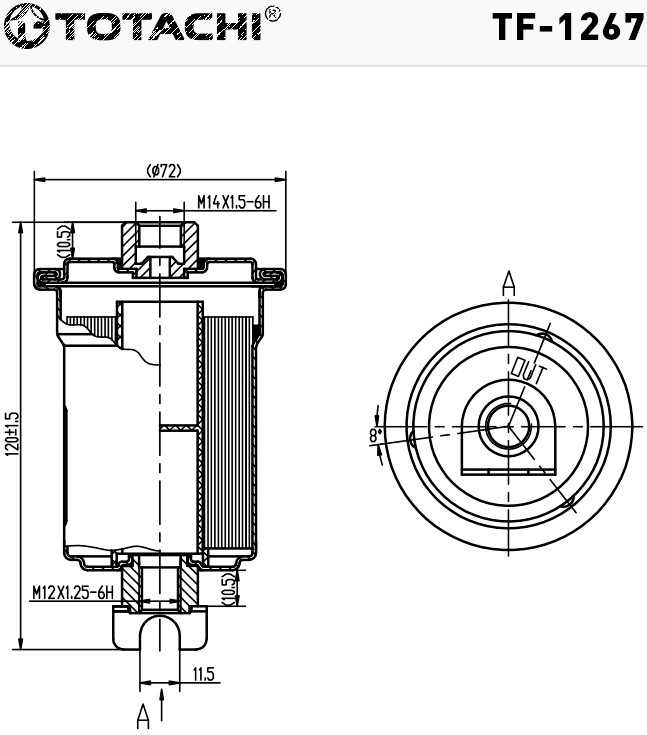

19100-11070 Distributor 89621-30010 Igniter (19070-10020 with coil) Gasoline filter was: G-6674 FRAM (mounting is not compatible) replaced before (original is FILTER, FUEL, FOR EFI /23300-19255 and /23300-19395) original has no bracket (like Kitto JN6002 ) outlet to injector pipe M12*1.25mm inlet from fuel tank M14*1.5mm total height 115-125mm ? diameter holder 55-56mm ? diameter max 70-71mm ? got replacement: Bosch 0986450115 (mounting is not compatible, same Sakura FS-11750 or Kitto JN6202) and installed. In tank first pump filter /23217-11010 - Toyota Sera (compatible SAT ST-23217-11010) |
|
|

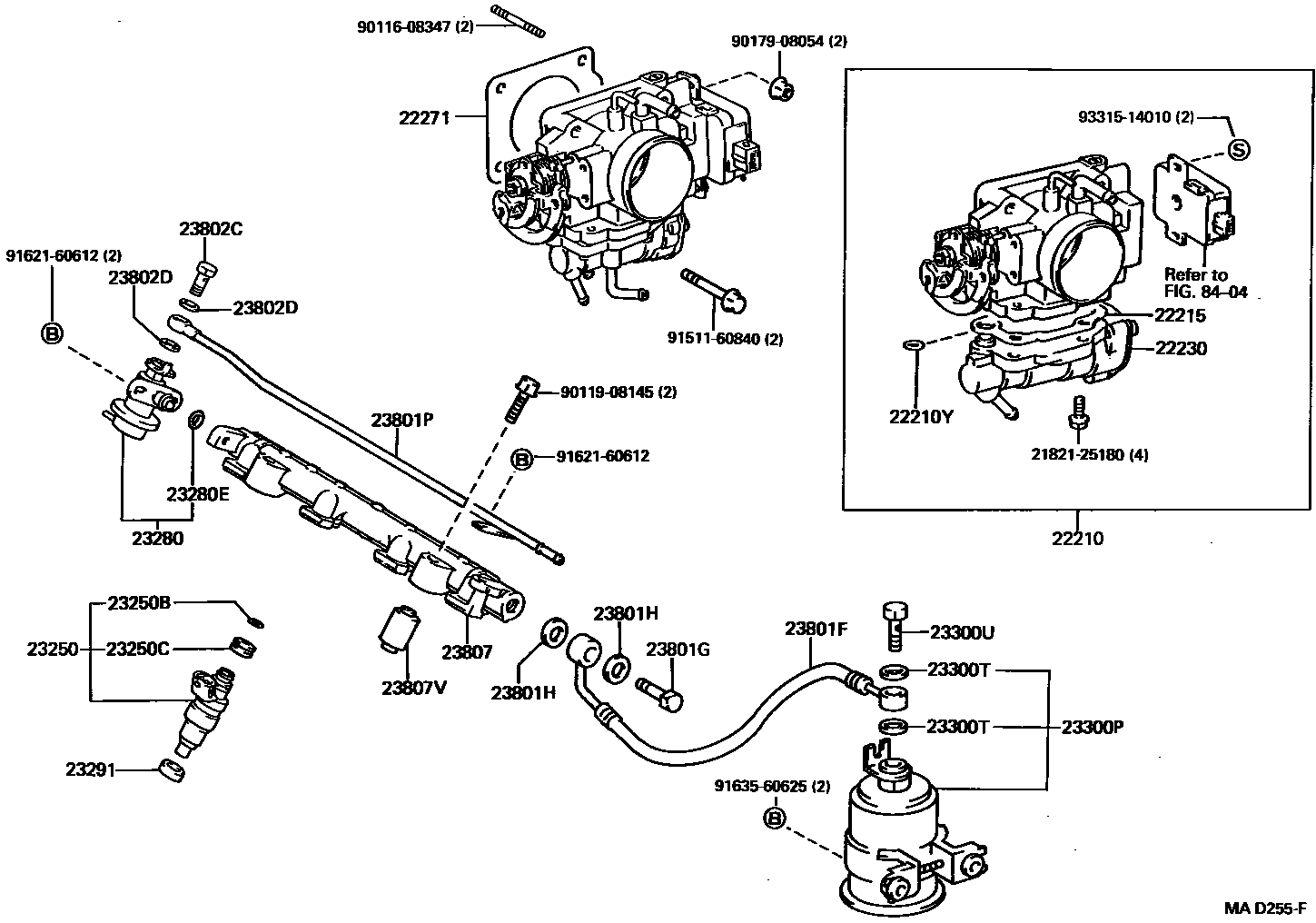

lost 1 screw /91631-60622 for fuel filter /buy found CANISTER ASSY, CHARCOAL and fuel injector /now 23250-11070 (original is 23209-11070) Sera injector gives 230 cc/min ! need test and clean injector -> 2018 need gasket set, o-ring 7.5*2.0 /90301-07001 |
|
|

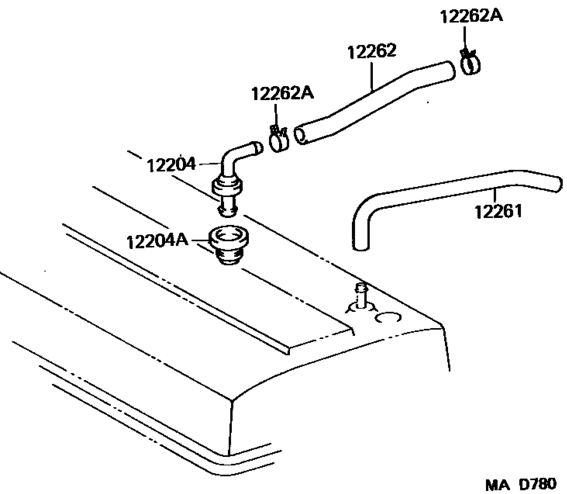

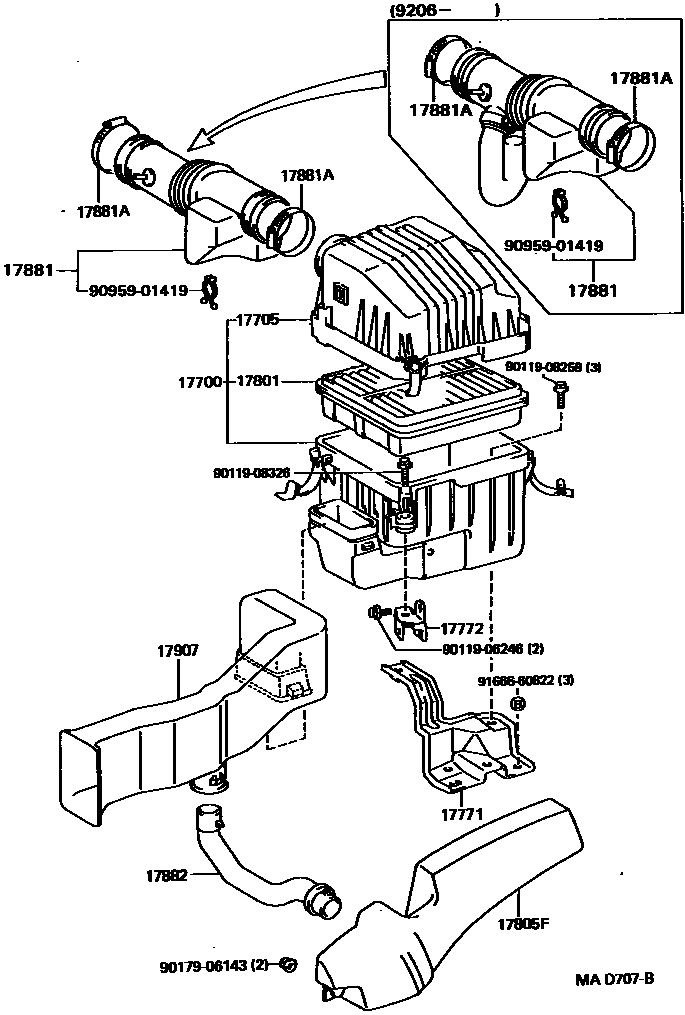

and replace air hose+filter AIR CLEANER FILTER element /17801-11050 There is top side engine sump air hose needs replacement /12262-11050 (1pc) and /12261-11100 (1pc) |
|
|

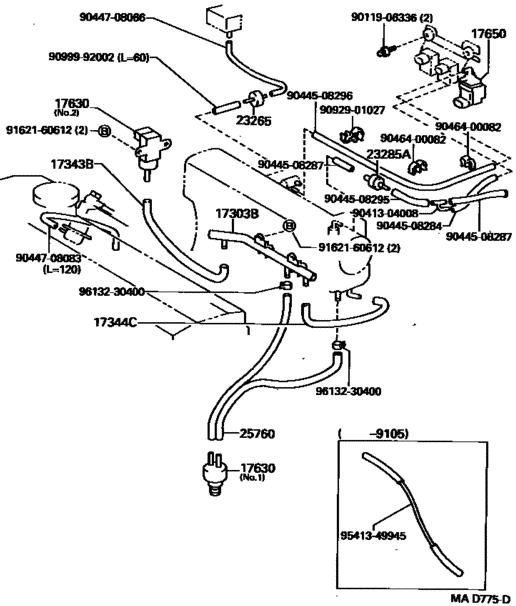

EFI parts to replace: THROTTLE POSITION (FOR E.F.I.) sensor, rear side of manifold, has 3-wire connector (power/ground/signal): /89452-14020 Denso 179950-0085 /89452-12060 01.5deg-60.0deg 12V Denso 179950-0361 IDLE valve on side of manifold: 17630 VALVE ASSY, AIR CONTROL now installed (2017) original solenoid AISIN (vacuum valve) no.2 /17630-11020 , has 2-pin connector; can be replaced with /17630-11050 -> original SERA02 and SERA03 it makes click sound when "ON" ignition (should open maximum for helping start cold engine) controlled by ECU, -> adjustment of idle should be done with connected pins TE1-E1 -> use screw on throttle , about 750 rpm and there is lower vacuum valve no.1 /17630-11060 or /17630-70020 -> this should be tested |
|
|
|
|
|
|
|
|
|
|
|
|
|
|

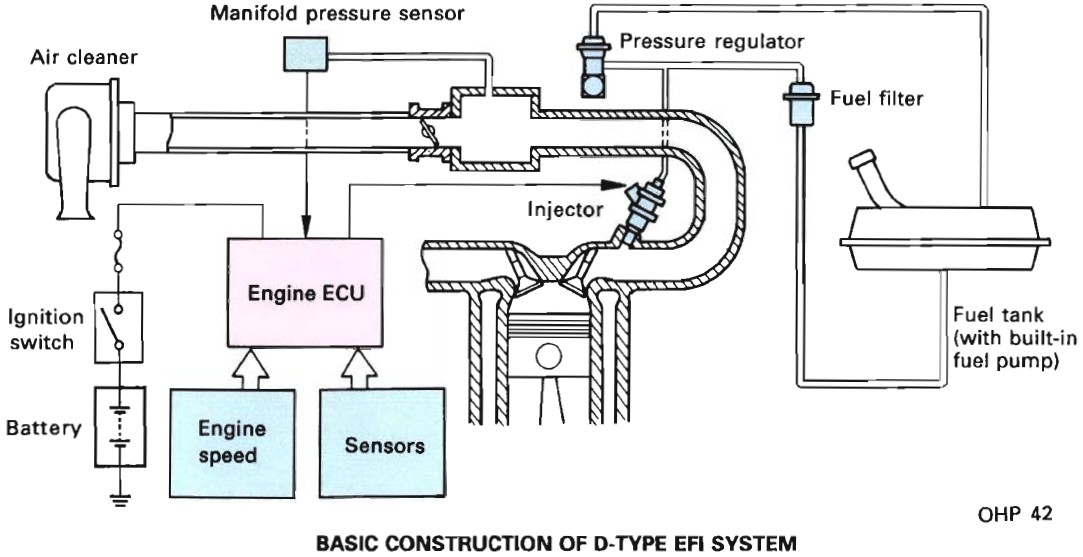

There is gasoline pressure control system for injector Since this is D-type EFI
|
|

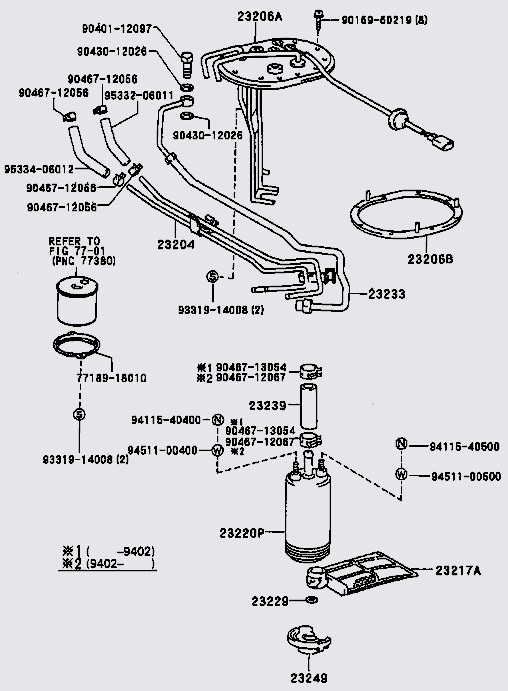

Fuel pump in tank /23220-43070
