0007464: 5E-FHE throttle open dips

ID	Project	Category	View Status	Date Submitted	Last Update

0007464	vehicle service	Toyota SERA	public	2024-09-02 12:09	2024-09-02 12:34

Reporter	DigitalMy
Priority	normal	Severity	minor	Reproducibility	have not tried
Status	assigned	Resolution	open

Summary	0007464: 5E-FHE throttle open dips
Description	Unstable motor operation dips and even stop on fast throttle open from idle EXY10
Tags	No tags attached.

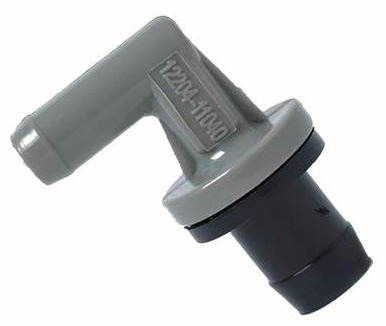

DigitalMy 2024-09-02 12:20 administrator ~0014363 Last edited: 2024-09-02 12:34 View 2 revisions	Before made vacuum piping 0007454 and changed throttle with position sensor 0001333 now changed ventilation valve ST-12204-11040 installed hose (with valve on cam cover) to intake manifold = vacuum line (managed by PCV=positive crankcase ventilation valve) ST-12204-11040_OIP.jpg (16,483 bytes) ST-12204-11040_OIP.jpg (16,483 bytes)

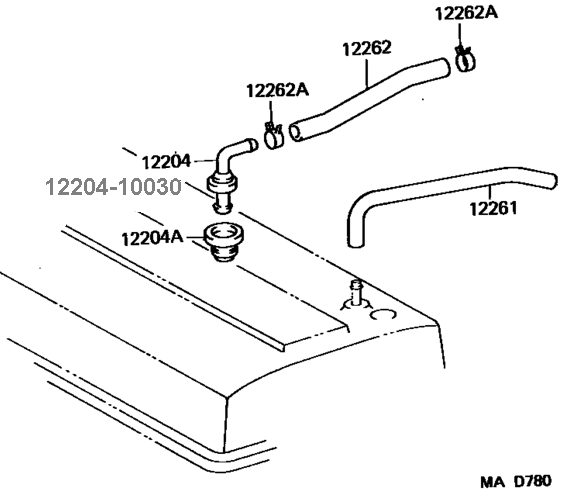

DigitalMy 2024-09-02 12:31 administrator ~0014364	There are two ventilation lines first before throttle without valve second to intake manifold with valve EXY10_ventilation_.png (26,312 bytes) EXY10_ventilation_.png (26,312 bytes)
